Organic Pigment Batch Color Difference: ΔE Troubleshooting, Tint Strength Testing and Supplier Qualification

/0 Comments/in , /by

Quick answer: An organic pigment batch color difference should not be judged from one drawdown or one ΔE number. First confirm that the supplier and buyer used the same reference pigment, pigment concentration, dispersant, milling energy, letdown, film thickness, substrate, drying conditions, instrument geometry and color-difference formula. Then separate shade shift from tinting-strength variation, poor dispersion, flocculation, moisture, process contamination and measurement error. A defensible lot decision combines repeat preparation, spectral data, relative strength, rub-up, fineness, viscosity and an application trial against an approved retain.

This guide is designed for pigment buyers, color laboratories, coating and plastics formulators, quality teams and production managers who need to investigate lot-to-lot color complaints without creating unnecessary rejection or accepting a material that will cause repeated shade adjustment. It provides a practical test-correlation, root-cause and supplier-qualification workflow that can be written into a purchase specification.

Organic Pigment Batch Color Difference: Decision Table

Observed result First question Best confirming evidence
ΔE is high but visual shade looks acceptable Are illuminant, observer, geometry and tolerance correct? Spectral comparison under agreed conditions and visual cabinet review
Tint is lighter with similar hue Is relative color strength lower or dispersion incomplete? Strength calculation plus staged-energy dispersion study
Rub-up creates a large color change Is the pigment flocculating after letdown? Rub-up ΔE, viscosity and dispersant ladder
Only production batches fail Does plant shear, temperature or addition order differ? Mill-base samples, energy history and scale-up trial
Supplier and buyer disagree Are they testing the same sealed material by the same method? Blind split-sample correlation study

Organic pigment batch color difference dispersion and drawdown testing

Define the Deviation Before Investigating It

A useful deviation statement identifies the approved reference, candidate lot, formulation, preparation method, specimen, instrument, numerical difference and application impact. “The pigment is off shade” is not enough. State whether the problem is mass tone, tint, transparency, opacity, gloss, undertone, strength, metamerism or finished-product appearance. Record whether the difference is repeatable and whether it appears in laboratory and production material.

Color is a system response. The same pigment powder can produce different measurements when the dispersion state, white base, binder, film thickness or drying schedule changes. Before assigning responsibility, preserve the raw pigment, mill base, letdown and finished specimen. Photograph labels and test panels, but do not use uncontrolled phone photographs as acceptance evidence. The investigation should recreate the result under a written method.

Why a Color Index Name Does Not Guarantee a Match

Two commercial pigments with the same Color Index designation can differ in crystal form, particle-size distribution, surface treatment, agglomeration, strength standard and manufacturing history. These differences influence hue, undertone, transparency, viscosity, dispersibility and durability. A purchase order that specifies only “Pigment Red” or a Color Index number leaves important commercial variables uncontrolled.

The approved commercial grade and manufacturing site should therefore be part of the qualification record. A substitute with the same chemical identity may be technically viable, but it must be evaluated as a new material. Suppliers should disclose the intended application range, normal strength standard, key physical controls and change-notification process. Buyers should avoid specifications so narrow that normal analytical variation causes rejection, while still protecting properties linked to customer appearance and processing cost.

Separate Shade Difference From Color Strength Difference

Shade describes the direction and character of color, while relative strength describes how much color is developed at a defined concentration and preparation. A weaker lot can appear lighter and may generate a large total color difference even when its intrinsic hue is close to the reference. Conversely, two samples can be adjusted to equal apparent depth and still show a significant undertone or spectral difference.

Prepare comparisons at equal pigment mass and, separately, at equal color strength when the application requires substitution. The equal-mass test supports incoming control; the equal-color test supports cost-in-use and formulation decisions. Report the strength adjustment needed to reach the reference. If a lower-priced pigment requires substantially more dosage, more dispersant or longer milling, its true formulation cost may be higher.

Understanding L*, a*, b* and ΔE

CIELAB expresses lightness as L*, the red–green axis as a*, and the yellow–blue axis as b*. The direction of change is often more diagnostic than total ΔE. A higher L* may indicate lower strength, higher opacity, different film thickness or greater scattering. Changes in a* and b* reveal hue movement, but the interpretation depends on the color region and sample type.

ΔE summarizes a difference under a selected formula. CIE76, CIE94 and CIEDE2000 do not produce interchangeable numbers. The purchase agreement should identify the formula, illuminant, standard observer, instrument geometry, aperture, spectral range, inclusion or exclusion of specular reflection and sample backing. The ISO/CIE 11664-6 information describes CIEDE2000 color-difference calculation, while laboratories should use the current applicable standard and validated procedure.

Set Tolerances From Process Capability and Customer Risk

A universal ΔE limit is not technically defensible. A tolerance suitable for a hidden plastic component may be unacceptable for an adjacent automotive part, brand color or transparent coating. Dark, saturated colors can also require different visual interpretation from pale tints. Establish tolerance through correlation between instrumental data, trained visual assessment, customer acceptance and process capability.

Use an internal alert limit to identify drift before the contractual rejection limit is reached. Trend individual L*, a*, b*, strength and gloss values, not only ΔE. A stable total difference can hide a consistent movement along one axis. Guard bands may be justified for high-risk colors, but they should be agreed rather than imposed after delivery. The objective is a reproducible decision that both laboratories can defend.

Control the Reference Standard

The reference pigment or master standard can age, absorb moisture, compact, become contaminated or gradually be consumed. If supplier and buyer use different generations of a standard, their results may drift while each laboratory believes it is consistent. Define the master standard, working standard, storage container, conditioning, expiry or review date and replacement procedure.

Qualify each new working standard against the protected master using multiple preparations. Do not replace a standard because the new batch is convenient; document bridging data and approval. Store enough retained material for complaint investigation. For long-term supply programs, review whether the original master still represents the commercially required color and whether its physical state remains suitable for repeatable dispersion.

Sample Preparation Is Often the Largest Source of Error

Weighing accuracy, addition order, dispersant level, vessel geometry, blade size, bead type, milling time, temperature and operator technique all affect color development. A small pigment mass magnifies weighing error. Dry pigment added too rapidly can form persistent agglomerates. Excessive heat can change the vehicle or promote flocculation after cooling. The method must describe the process in enough detail for another trained laboratory to reproduce it.

Run at least duplicate independent preparations when investigating a dispute. Re-reading one panel several times measures instrument repeatability, not preparation reproducibility. Randomize sample codes to reduce expectation bias. Include a known control pigment or stable control panel so that abnormal method performance is detected before the candidate lot is judged.

Dispersion Energy and Endpoint

Organic pigments can show increasing strength and changing undertone as agglomerates are broken and particles become stabilized. Comparing a readily dispersible reference with a slower-developing candidate at one fixed short time may measure dispersion speed rather than final potential. Conversely, milling every sample for an excessive time can hide economically important differences in processing demand.

Use a staged-energy study during qualification. Measure fineness, viscosity, strength, shade and temperature at defined intervals. Plot performance against energy or time and identify the plateau. The approved production method should operate inside a robust window rather than exactly at the minimum time. If one lot requires substantially more energy than historical material, treat that as a process-cost and consistency signal even if the final color eventually passes.

Fineness of Grind Is Necessary but Not Sufficient

A grind gauge detects coarse particles or agglomerates but does not directly measure the full particle-size distribution or degree of color development. Two dispersions can show the same Hegman reading while differing in strength, gloss, transparency and storage stability. The gauge result is also sensitive to technique, cleanliness and interpretation.

Combine fineness with instrumental color, relative strength, microscopy where useful and application properties. The ASTM D1210 information explains a recognized gauge approach for pigment–vehicle systems. Buyer and supplier should agree on the current procedure, gauge range, sample conditioning and endpoint definition. A method name alone does not eliminate operator variation.

Rub-Up Testing and Flocculation

Rub-up testing compares a mechanically rubbed area of a wet or partially set film with the untouched area. A significant color difference indicates that pigment distribution or flocculation can still be changed by shear. It does not prove that the raw pigment is defective. Dispersant adsorption, binder interaction, rheology modifiers, surfactants and drying rate can all contribute.

Define the time after application, number and pressure of rubs, film thickness and measurement locations. Measure and photograph both areas under controlled lighting. If a new lot shows a larger rub-up difference, repeat with a dispersant ladder and compare viscosity after letdown. A pigment that passes in the mill base but flocculates in the final binder needs formulation-level investigation.

Mass Tone, Tint and Letdown Must Be Distinguished

Mass tone evaluates the pigment at high concentration and is sensitive to undertone, transparency and surface appearance. Tint testing mixes the pigment with a controlled white base and is highly useful for relative strength and subtle hue differences. A letdown places the dispersion into the actual binder or application formulation and reveals compatibility. Each answers a different question.

For incoming control, use the method most strongly correlated with customer risk. Many buyers need both a standardized tint and a finished-formulation panel. Specify white pigment grade, white-base lot, mixing ratio, film applicator, substrate and dry-film conditioning. Changes in titanium dioxide undertone or strength can look like an organic pigment deviation, so white-base control must be demonstrated.

Film Thickness, Substrate and Drying Conditions

Transparent and semi-transparent pigments are especially sensitive to substrate and film thickness. A small thickness difference can change lightness, saturation and apparent undertone. Black-and-white cards, metal panels, plastic plaques and paper drawdown charts do not provide equivalent optical backgrounds. Surface texture and gloss also influence measurement.

Use a calibrated applicator and verify wet or dry film thickness where required. Condition panels at defined temperature, humidity and time. Do not compare one specimen immediately after drying with another after extended aging. If the application is heat-cured, record oven temperature, metal temperature and dwell time. A color shift caused by cure conditions is not automatically a pigment-lot failure.

Instrument Geometry and Surface Effects

Spectrophotometers may use diffuse/8° or 45°/0° geometries and may include or exclude specular reflection. Gloss, texture and directional surfaces can therefore produce different results between instruments. Aperture size matters when a specimen is nonuniform. Instruments should be calibrated, maintained and verified with appropriate tiles or control panels.

For cross-site correlation, compare the same stable panels before comparing independently prepared samples. This separates instrument bias from preparation bias. Record instrument model, serial number, geometry, aperture, illuminant, observer and software formula. If panels are translucent, control backing and orientation. A digital value without these conditions is incomplete evidence.

Metamerism and Multi-Illuminant Review

Two colors can match under daylight and differ under retail, office or warm indoor lighting because their spectral curves are different. This is metamerism. A low ΔE under one illuminant does not guarantee a robust commercial match. Brand colors, multi-component assemblies and products used across lighting environments require multi-illuminant evaluation.

Review spectral reflectance curves and use a maintained light booth with agreed illuminants. Allow observers to adapt and avoid surrounding colors that bias judgment. Record whether the requirement is an exact spectral match, a visual match under primary lighting or a controlled metamerism index. Supplier recommendations should consider pigment chemistry and companion colorants, not only the initial daylight result.

Moisture, Volatiles and Sample Conditioning

Variable moisture changes the effective pigment mass and can alter wetting, dispersion time, viscosity and strength. Hygroscopic contamination or volatile residues may also influence a waterborne or solvent-borne vehicle. A powder weighed directly from a cold warehouse can condense moisture when opened in a warm laboratory.

Condition sealed samples to the agreed laboratory environment before opening. Measure moisture by a validated method when it is a critical specification. Express strength on an as-received or dry basis consistently. Avoid informal oven drying that can change surface treatment or crystal form. Compare sealed supplier retain, receipt retain and working container when storage or repeated sampling may have changed the material.

Contamination and Cross-Color Carryover

Small amounts of another strong pigment, carbon black, optical brightener, titanium dioxide, cleaning residue or process dust can create a measurable shade shift. Cross-contamination may occur in milling, drying, blending, packaging, sampling or the buyer’s transfer equipment. The first material from a line can differ from the middle of a lot.

Inspect manufacturing sequence, cleaning records, package condition and sampling tools. Compare package-to-package samples rather than creating one composite that hides local contamination. Microscopy, elemental screening or spectral fingerprints may help identify foreign material. Preserve evidence before cleaning. Corrective action should address equipment design, campaign sequencing, line clearance, packaging control and label verification.

Crystal Form and Heat History

Some organic pigment chemistries can exist in different crystal modifications or change particle state under strong solvent, heat or shear conditions. Commercial manufacture controls these properties to achieve the intended shade and performance. An abnormal process condition or unapproved raw-material change may shift undertone, transparency or dispersibility even when basic identity remains correct.

Review supplier manufacturing deviations, drying conditions and change records. At the buyer, compare processing temperature and residence time with the approved window. In plastics, prepare stepped-temperature plaques to reveal heat-induced color movement. In coatings and inks, examine solvent and binder interactions. Specialized analytical work should be targeted by evidence rather than requested as a routine substitute for well-controlled application testing.

Diagnosing Low Relative Tinting Strength

Low strength can result from lower effective pigment content, incomplete dispersion, larger particle state, flocculation, moisture, weighing error, white-base variation or reference-standard drift. Start with a repeat preparation by another qualified analyst using fresh materials. Confirm balances and pigment concentration. Compare the development curve with staged milling.

If the candidate reaches normal strength only after much more energy, it may still be usable but will change production cost and capacity. If strength remains low while shade and physical tests are consistent, compare dry-basis content and supplier trend data. Avoid compensating immediately by adding pigment; doing so can change viscosity, opacity, gloss, durability and formulation economics.

Diagnosing Undertone Shift

An undertone shift with normal strength often points toward particle-state, crystal-form, surface-treatment or contamination differences, but preparation variables must be excluded first. Check film thickness, white base, drying and instrument conditions. Compare spectral curves and the direction of a* and b* changes at several tint levels.

Different tint ratios can reveal whether the difference is constant or concentration-dependent. Evaluate mass tone and transparency. If the shift is confirmed across independent preparations and actual applications, review the supplier’s lot trend, reference standard and process changes. Agree whether the lot can be shade-adjusted without creating customer or durability risk; concessions should be documented and never become an uncontrolled new standard.

Diagnosing High ΔE With Normal Visual Appearance

When an instrument fails a lot that trained observers accept, verify whether the numerical tolerance and method represent the product. Surface texture, gloss difference, edge effects, aperture placement and an inappropriate formula can inflate the result. Examine component values and spectral curves instead of relying on one total number.

Do not simply override the instrument. Recheck stable panels, measure multiple locations and confirm orientation. If the disagreement persists, conduct a structured visual–instrument correlation using accepted and rejected production samples. The final specification may need separate limits for color, gloss and appearance or a different geometry, but any change should be supported by data and customer requirements.

When Laboratory Results Pass but Production Fails

Laboratory mills provide different shear, residence time, cooling and circulation from plant equipment. Production water quality, binder lot, addition rate, batch size and cleaning status can expose a sensitivity not visible in a small test. Collect samples from the pigment, mill base, post-letdown stage and finished batch. Record energy, temperature, time, pH, viscosity and foam.

Scale-up should match relevant process intensity rather than revolutions per minute alone. Check for dead zones, vortexing, temperature rise and inadequate wetting during powder addition. Run the reference and candidate under the same controlled plant conditions. If only the candidate has a narrow process window, include that difference in supplier selection and total-cost assessment.

Organic pigment batch color difference quality control and spectral review

Supplier–Buyer Correlation Study

Prepare a protocol before testing begins. Select an approved lot, the disputed lot and, if possible, a third lot spanning normal variation. Split each into sealed coded portions. Both laboratories use the same written preparation, reference standard, vehicle, white base, application and measurement settings. Include duplicate preparations on different days.

Exchange raw readings, spectra, strength calculations, photographs under controlled lighting, instrument details and deviations. Compare repeatability within each laboratory before comparing laboratory means. A laboratory with poor internal precision cannot establish supplier bias. If both are precise but offset, test the same stable panels to isolate instrument effects, then the same prepared dispersion to isolate preparation effects. Define an agreed referee process for future disputes.

Control Charts and Lot Trending

Plot L*, a*, b*, relative strength, moisture, fineness, viscosity and any key application result by lot and manufacturing date. Add supplier and buyer values when available. Statistical trends identify gradual drift before material reaches the rejection limit and show whether a disputed lot is isolated or part of a sustained shift.

Do not mix different grades, sites, methods or reference standards on one chart. Annotate equipment maintenance, process changes, new raw materials and standard replacement. Review average and variation together. A stable mean with widening spread increases risk. Trend information is also valuable in supplier discussions because it replaces subjective claims with a shared history.

Supplier Qualification Evidence

A qualified supplier should demonstrate control of identity, strength, shade, particle state, moisture, contamination, packaging and traceability. Review normal commercial-lot certificates, not only a specially selected sample. Ask how reference standards are maintained, how color is adjusted, how shared equipment is cleaned and how changes are evaluated and communicated.

Technical service matters. A strong supplier can reproduce the buyer’s problem, provide retain data, review spectral direction and support application trials. Qualification should include capacity, continuity, regulatory documentation, lead time and complaint response. Price per kilogram is only one factor; recurring shade corrections, extra milling, rejected batches and customer complaints can dominate total cost.

Write a Reproducible Purchase Specification

  • Commercial grade, Color Index identity and approved manufacturing site.
  • Reference standard identity, storage and replacement procedure.
  • Mass-tone, tint or application preparation with exact formulation.
  • Dispersion equipment, time or energy, temperature and endpoint.
  • Substrate, applicator, film thickness, cure and conditioning.
  • Instrument geometry, aperture, illuminant, observer and ΔE formula.
  • Limits for L*, a*, b*, ΔE and relative strength where justified.
  • Moisture, residue, fineness and other process-linked controls.
  • COA reporting, retain sample and referee testing requirements.
  • Change notification, complaint timing and concession authority.

Incoming Inspection Based on Risk

New suppliers, new sites, critical brand colors and narrow process windows justify each-lot performance testing. Mature sources with demonstrated capability may move to reduced inspection while retaining periodic verification. Damaged packaging, labeling discrepancies, abnormal appearance or a trend warning should restore enhanced testing.

The plan should define sample selection across packages, test sequence, acceptance, alert handling and retest rules. Retesting must not continue until a passing result appears. Preserve the initial result and investigate assignable causes. Maintain receipt retains long enough to support production and customer complaints. Link incoming data to finished-product outcomes so tests remain relevant.

Production Trial and Commercial Approval

Advance a candidate only after repeat laboratory preparation shows acceptable performance. Run a monitored pilot or production trial against an approved control. Keep formulation, equipment, operator instructions, dosage and process window consistent. Measure color at the mill base, after letdown and in the finished product.

Record adjustment time, pigment consumption, energy, filtration, cleaning, waste, throughput and final acceptance. A lot that passes after extensive manual correction is not equivalent to one that runs predictably. For critical programs, qualify multiple independent commercial lots. Approval should identify the exact grade and site so purchasing cannot make an unreviewed same-index substitution.

Cost-in-Use Calculation

Normalize cost to a tonne of conforming finished product at equal shade, strength and durability. Include pigment dose, dispersant demand, milling energy, cycle time, filter life, shade-adjustment labor, yield loss and rejected material. A high-strength pigment can reduce dosage; an easier-dispersing grade can release mill capacity. A cheaper pigment may be valuable if its process window and consistency are proven.

Do not reduce dosage based only on one tint test. Confirm opacity or transparency, weathering, migration, chemical resistance and finished appearance at the proposed formulation. Present both technical and financial evidence to purchasing. This prevents short-term price savings from creating hidden conversion cost.

Investigation Workflow

  1. Quarantine the affected material and preserve sealed samples.
  2. Define the approved reference, failure mode and commercial risk.
  3. Check labels, package condition, sampling and storage history.
  4. Verify instrument, reference panels, white base and formulation components.
  5. Repeat independent preparations using the approved method.
  6. Separate shade, strength, dispersion, rub-up and gloss effects.
  7. Compare staged-energy development and after-letdown stability.
  8. Review supplier retain results, lot trend and change records.
  9. Run a matched application or production trial when appropriate.
  10. Document disposition, root cause, corrective action and follow-up trend.

Frequently Asked Questions

What ΔE limit should be used for organic pigments?

There is no universal limit. Establish the limit from application risk, visual correlation, measurement repeatability, customer expectations and process capability. State the color-difference formula and all measurement conditions.

Can two lots pass ΔE but have different strength?

Yes. Total color difference and relative tinting strength measure related but different characteristics. Report both when pigment dosage, cost or color development matters.

Why does the shade change after letdown?

Binder interaction, dispersant displacement, flocculation, rheology modifiers, pH or solvent balance can change particle distribution. Compare rub-up, viscosity and color before and after letdown.

How many preparations are needed for a complaint?

At least two independent preparations are preferable, with a control lot and documented method. High-risk disputes may require testing on different days or by both laboratories using split samples.

Is visual assessment still necessary?

Yes. Instrumental measurement improves objectivity, but trained visual review detects appearance, texture and lighting-dependent differences. Use controlled lighting and agreed acceptance rules.

Can a supplier adjust an off-shade lot?

Adjustment may be possible within a controlled manufacturing process, but the reworked material must meet the complete specification and retain traceability. Buyers should be notified when quality agreements require it.

Why do supplier and buyer instruments disagree?

Geometry, calibration, aperture, software, illuminant, observer, backing and specimen placement may differ. Compare the same stable panels before blaming sample preparation or raw material.

Does a matching Color Index prove interchangeability?

No. Commercial grades can differ in particle state, surface treatment, strength, transparency, dispersibility and durability. Qualify the exact grade in the intended application.

What should be included with a complaint sample?

Include lot and package identity, sampling history, storage, test formulation, raw readings, spectra, instrument settings, panels or plaques, photographs and production observations. Retain a sealed portion.

How should a new supplier be approved?

Review multiple normal production lots, repeat laboratory preparation, application and pilot performance, documentation, change control, capacity and technical response before commercial approval.

Related Organic Pigment Resources

For application-specific formulation guidance, review organic pigments for water-based coatings, organic pigments for powder coatings and organic pigments for polyolefins. For sourcing systems, use the organic pigment supplier qualification guide. This page owns batch color-difference diagnosis and measurement correlation, while the linked pages address end-use selection.

Request a Batch Correlation Sample and Quotation

Send Hengyi Technology your target Color Index or approved grade, reference shade, formulation or polymer, test method, ΔE formula, relative-strength requirement, current failure mode, annual demand, package and destination. We can prepare a representative commercial-lot sample, COA, technical data and a comparison plan aligned with your laboratory.

Contact Hengyi Technology to request an organic pigment sample, batch-correlation review and commercial quotation.

Final Purchasing Principle

Organic pigment batch color difference is controlled most effectively when color is treated as a complete measurement and processing system. A reliable program aligns reference standards, dispersion, specimen preparation, instrument settings, tolerances, lot trending and application performance. This approach reduces false rejection, exposes genuine supplier drift earlier and turns color approval into a reproducible sourcing decision rather than a subjective argument.

Dimethyl silicone oil viscosity grades from 50 to 10000 cSt

Dimethyl Silicone Oil Viscosity Drift: Root Causes, Test Method Correlation and Supplier Qualification

/0 Comments/in , /by

Quick answer: dimethyl silicone oil viscosity drift should be investigated as a measurement-and-material system problem, not treated as proof that the polymer has degraded. First confirm test temperature, viscometer type, spindle or capillary, equilibration time, sample history and calibration. Then compare a sealed retain, tank sample and packaged lot. Genuine drift can result from contamination, blending error, loss of low-viscosity fractions, thermal or oxidative exposure, moisture, incompatible additives, or mixing of grades. A defensible release decision requires repeatable measurements, mass-balance evidence and a matched application trial.

This guide is for purchasing, quality, laboratory and process teams that receive polydimethylsiloxane fluid whose reported viscosity differs between supplier and buyer, changes during storage, or produces unexpected pumping, coating, release or lubrication performance. It separates common laboratory artifacts from real material changes and provides a supplier-qualification and RFQ framework designed to prevent repeat complaints.

Dimethyl Silicone Oil Viscosity Drift: Decision Summary

Observation Most likely first check Evidence needed before disposition
Supplier and buyer results differ Temperature, method and instrument correlation Shared sealed sample tested by both laboratories
Viscosity rises in an opened drum Contamination, evaporation, cold conditioning Retain comparison, volatile profile and storage record
Viscosity falls after transfer Residual solvent, cleaning fluid or wrong grade Line-clearance evidence, density and trace analysis
Result varies between repeats Air bubbles, inadequate equilibration or geometry Replicate method study with acceptance criteria
COA passes but application fails Functional range or another property Matched application trial and broader property review

Dimethyl silicone oil viscosity drift laboratory testing and quality control

What Viscosity Drift Actually Means

Viscosity drift is a change or apparent change from an agreed reference. The reference may be a supplier certificate, an incoming result, a historical mean, a tank value or an application target. These references are not interchangeable. A certificate describes a sample tested by a defined method at a stated time. An incoming test describes a different sample after shipping and handling. A process result may reflect temperature, shear history and contamination that were never present in the retained laboratory sample.

Before opening a deviation, define the comparison: numerical result, units, temperature, method, instrument, sample location, date and uncertainty. A ten percent difference may be significant for a narrow-viscosity precision application but normal when two loosely defined rotational methods are compared. The investigation should determine whether the difference is analytical, sampling-related, logistical, compositional or functional.

Why Test Temperature Dominates the Result

Dimethyl silicone oil becomes less viscous as temperature rises. Even a small temperature difference can create a meaningful shift, especially when a specification is narrow or the material is high viscosity. A sample labeled 1000 cSt is not simply “1000” under every laboratory condition. The test temperature, time allowed to equilibrate, bath uniformity and thermometer traceability must be part of the result.

Do not warm a cold sample rapidly and measure only the outer layer. Do not assume that a room marked 25°C means the liquid is at 25°C. Condition the closed sample long enough for its core temperature to stabilize, mix only when the procedure requires it, avoid moisture exposure and record actual sample temperature. When supplier and buyer results disagree, temperature reconciliation is the fastest and most productive first step.

Kinematic Viscosity Versus Dynamic Viscosity

Kinematic viscosity is commonly reported in centistokes, while dynamic viscosity is commonly reported in millipascal-seconds or centipoise. The two are related through density, but they are not numerically identical in every case. A conversion made with an assumed density can create a systematic difference. The report should say which quantity was measured, which was calculated, the density value used and the temperature for both properties.

Capillary methods measure flow time under gravity and are well suited to clean Newtonian fluids within the calibrated range. Rotational instruments measure torque under defined geometry and speed. Both can be useful, but the results should not be compared casually. If procurement writes “viscosity 1000” without units, temperature or method, disputes are almost guaranteed.

Capillary Method Variables That Cause False Drift

A calibrated capillary must be clean, dry, correctly selected and operated within its valid flow-time range. Residual solvent, dust or a film from the previous sample can change flow. Bubbles interrupt the liquid column. Incorrect filling, poor timing, a tilted instrument or an unstable bath produces bias. Using different capillary constants or rounding practices can create a difference that looks like lot variation.

Quality control should document capillary identification, constant, cleaning verification, bath temperature, timing repeats and calculation. Include a check fluid or control sample at an appropriate frequency. When a result is atypical, use a second qualified capillary and a fresh preparation rather than repeatedly timing the same questionable charge. The official ASTM D445 information explains the gravity-flow principle for transparent and opaque Newtonian liquids; laboratories should use the current applicable procedure and validated internal instructions.

Rotational Viscometer Variables That Cause False Drift

Rotational results depend on spindle or geometry, speed, container dimensions, immersion depth, temperature and torque range. A reading taken at very low torque can be unstable. A narrow beaker, wrong spindle guard or incorrect immersion mark alters the flow field. Trapped air and vibration add noise. Results from different spindle-speed combinations may not be directly comparable even when the displayed unit is the same.

The method should identify instrument model, geometry, spindle, speed, sample volume, conditioning time, reading time and acceptable torque window. Use the same validated setup for release and trend data. If a customer uses another configuration, establish correlation with shared samples. Dimethyl silicone fluids are generally close to Newtonian under ordinary test conditions, so strong speed dependence may indicate method problems, contamination, fillers or another non-ideal condition.

Sampling Error: The Drum Is Not the Sample Jar

A retained bottle can be uniform while a drum has contamination at the valve, condensed moisture at the headspace or residues near the bottom. Conversely, a poorly cleaned sampling tool can contaminate an otherwise conforming lot. Sampling location, depth, container, sequence and transfer time should be recorded. Take separate top, middle and bottom samples when stratification or foreign liquid is suspected rather than blending away the evidence.

Use clean, dry, compatible containers with tight closures. Avoid flexible materials that may extract, absorb or release components. Label each sample with batch, package, position, date, sampler and condition. Preserve an unopened supplier retain and a buyer receipt retain. A shared sealed reference is essential when two laboratories disagree because it separates method bias from package-to-package or handling variation.

Air Bubbles, Foam and Incomplete Equilibration

Silicone oils can trap small bubbles during vigorous shaking, pumping or filling. In capillary testing, bubbles disrupt flow. In rotational testing, they reduce effective contact and cause unstable torque. The sample may look clear while microbubbles remain. Allow an appropriate rest period, use gentle handling and inspect against good lighting. Vacuum degassing may be appropriate in a validated method, but it can also remove volatile contamination and alter the evidence during an investigation.

Thermal equilibration matters equally. A large sample transferred from a cold warehouse can require significant time to reach laboratory temperature. Stirring speeds equilibration but may introduce air. Define a controlled procedure and demonstrate that repeated readings have stabilized. “Wait until room temperature” is not a test method.

Contamination With Solvent, Water or Cleaning Fluid

Low-viscosity contamination usually lowers the measured viscosity, but the effect depends on identity and concentration. Common sources include residual flushing solvent, hydraulic oil, water, detergent, another silicone grade and lubricants from pumps or seals. Some contaminants also cause haze, odor, phase separation, surface defects or poor electrical performance. A clear appearance does not prove purity.

Compare viscosity with density, refractive index, volatile loss, infrared profile and, where justified, chromatographic screening. Inspect transfer records and line-clearance documents. Test the first draw from a valve separately from the bulk. If contamination is suspected, quarantine the lot and preserve samples before cleaning equipment. A supplier cannot investigate effectively if the only sample has been consumed or mixed with other material.

Mixing of Different Viscosity Grades

Accidental grade mixing can occur through shared tanks, hoses, intermediate containers, mislabeled drums or incomplete line clearance. The resulting viscosity may remain within a broad specification while application behavior changes. Traceability should connect raw material, reactor or blending vessel, filtration, filling line, package labels and finished-lot release.

A mass-balance calculation can test whether the observed value is consistent with a plausible mixing event, but viscosity blending is not always linear on an arithmetic scale. Confirm with controlled laboratory blends using the suspected grades. Compare density and other fingerprint properties. Corrective action may include dedicated connections, barcode verification, physical segregation, first-flush rules and reconciliation of filled quantities.

Thermal Exposure and Oxidative Change

Properly manufactured dimethyl silicone oil is thermally stable across many handling conditions, but prolonged excessive heat, oxygen exposure, catalysts, reactive contaminants or severe processing can alter molecular distribution or generate volatile species. A real increase or decrease in viscosity should not be attributed to “heat degradation” without evidence. Review the complete temperature-time history, not just the maximum reading.

Compare color, odor, acidity where relevant, volatile content, molecular distribution and viscosity. Inspect heater surfaces for hot spots and verify sensor location. A bulk tank display may not reveal film temperature at a heating coil. If the fluid was used in a process, collect both unused retain and circulated sample. The difference can separate supplier-lot quality from process exposure.

Storage Time, Package Closure and Volatile Balance

Dimethyl silicone oils are available in different molecular-weight ranges. A well-controlled commercial grade should remain stable within its recommended storage conditions, but an opened package can gain contamination or lose low-boiling components if present. Repeated heating and venting can change the volatile balance. Poorly sealed sampling ports and damaged gaskets increase risk.

Trend sealed and opened packages separately. Record opening date, number of withdrawals, headspace practice, storage temperature and closure condition. Do not use an open-drum result to claim that every sealed drum in the lot has changed. Establish a justified partial-package shelf life and handling instruction based on data.

Why a COA Pass Can Still Produce Process Failure

Viscosity is important, but it is not the only property controlling pumping, coating, lubrication, spreading or release. Surface tension, volatility, molecular distribution, contamination, temperature and the rest of the formulation can change performance. A lot can meet a broad viscosity specification yet sit outside a buyer’s proven functional range. Conversely, an apparent viscosity deviation may have no practical effect.

Link incoming data to application results. For a coating process, track film weight, leveling, defects and cure compatibility. For release, record transfer, buildup and surface appearance. For lubrication, measure friction and carryover. The goal is not to maximize laboratory similarity; it is to define a material window that reliably supports the process.

Designing a Laboratory Correlation Study

Supplier and buyer should each test aliquots from the same sealed composite or referee sample. Agree in advance on temperature, method, instrument, geometry, equilibration, number of repeats, calculation and reporting. Include a certified or well-characterized control fluid near the target range. Randomize sample order if multiple lots are compared.

Report individual readings, mean, range and any excluded result with reason. A difference between laboratory means may be statistically real but commercially insignificant; define acceptance using method precision and process risk. If one laboratory shows a stable offset, investigate calibration and method details before adjusting specifications. A correlation equation can be useful only when supported across the relevant viscosity range and maintained over time.

Measurement Uncertainty and Guard Bands

A specification with no room for method variation creates avoidable disputes. Estimate repeatability, intermediate precision and relevant calibration uncertainty. Include sampling and temperature contributions when they are material. The contractual limit should be realistic relative to combined uncertainty and supplier capability. Internal alert limits can be narrower and used to trigger review rather than automatic rejection.

Guard bands may protect a critical application, but they must be agreed and justified. A buyer should not silently reject material at an internal alert point when the purchase specification allows it. Likewise, a supplier should not rely only on nominal grade name when actual data trends toward an edge. Transparent reporting and shared trend review reduce both false rejection and hidden drift.

Control Charts for Supplier and Buyer Data

Plot viscosity by manufacturing lot, package, production line, date and test instrument. Add the supplier result, buyer result and process outcome. A control chart reveals sustained shifts and increasing variation before results cross the formal limit. It also shows whether a single complaint is exceptional or part of a pattern.

Do not recalculate limits after every small data set or remove inconvenient results without investigation. Separate grades and methods. Annotate equipment changes, raw-material changes, laboratory maintenance and packaging changes. Review mean and dispersion together because a stable average can hide widening variation.

Incoming Inspection Based on Risk

New suppliers, new sites, critical processes and narrow functional windows justify each-lot verification and an application trial. A mature supplier with strong capability, aligned methods and good complaint response may qualify for reduced testing. Damaged packages, abnormal appearance, labeling discrepancies or transport excursions should return the plan to enhanced inspection.

The procedure should state sample count, package selection, method, acceptance, alert handling, retest rules and authority for concession. Retesting must not become repeated testing until a passing value appears. Preserve the original result, investigate assignable causes and use a pre-approved retest protocol.

Matched Process Trial for a Suspect Lot

Compare the suspect lot with an approved retain under the same equipment, formulation, temperature, dosage and order of addition. Randomize or alternate runs where practical. Record viscosity at the point of use, not only in the laboratory. Measure the actual failure response: pump pressure, coat weight, release force, friction, defects, transfer, foam or surface appearance.

If possible, include a third reference lot and blind the operator to sample identity. One successful run does not establish equivalence; replicate enough to distinguish material response from process noise. If the application tracks viscosity consistently, the evidence can support a narrower functional range. If it does not, investigate other properties rather than forcing viscosity to explain every difference.

Dimethyl silicone oil viscosity drift investigation in industrial process trial

Packaging and Transport Controls

Specify drum, IBC or tanker construction; liner or seal materials; closure; cleanliness; filling headspace; labeling and tamper evidence. Transport equipment must be compatible and demonstrably clean. For bulk deliveries, agree on previous-cargo restrictions, cleaning certificate, seal numbers and sampling points. Temperature excursions can affect immediate measurement even when they do not permanently change the material.

On receipt, photograph seals and package condition, verify labels and allow material to equilibrate while closed. Do not sample a cold drum and compare it with a supplier result generated at controlled temperature. Wet pallets, damaged closures, bulged packages or unusual odor require quarantine and documented assessment.

Supplier Qualification Questions

Ask the manufacturer to describe polymerization or blending controls, viscosity adjustment, filtration, tank segregation, line clearance, test method, calibration, retained samples and change notification. Request recent COAs from multiple commercial lots, not only a marketing sample. Review manufacturing-site consistency and the supplier’s ability to investigate with traceable data.

A quality agreement should define specification, method, units, temperature, sampling, complaint sample, referee testing, deviations, reprocessing, change control and notification time. Procurement should evaluate lead time, technical response, package options and continuity plan together with price. A slightly cheaper fluid is not lower cost if it creates line stoppage and repeated laboratory disputes.

RFQ and Purchase Specification Checklist

  • Product identity and required dimethyl silicone oil grade.
  • Target kinematic or dynamic viscosity, units, test temperature and method.
  • Contractual limits plus preferred typical range.
  • Density, appearance, volatile matter and other critical properties.
  • Application, point-of-use temperature and functional failure to prevent.
  • Package type, net weight, liner, seal and pallet requirements.
  • Required COA values, SDS, technical data and regulatory documents.
  • Sample size linked to a representative commercial lot.
  • Annual demand, destination, delivery schedule and shelf-life expectation.
  • Change-notification, complaint response and referee-sample process.

Investigation Workflow for Dimethyl Silicone Oil Viscosity Drift

  1. Quarantine affected packages and preserve original samples.
  2. Define the reference result, method, temperature, units and sample history.
  3. Inspect labeling, seals, transport, storage and transfer records.
  4. Repeat the approved method with fresh preparation and qualified controls.
  5. Compare sealed supplier retain, buyer retain and point-of-use sample.
  6. Check density, appearance, volatiles and fingerprints for contamination.
  7. Review grade segregation, cleaning and mass-balance evidence.
  8. Run a matched application trial against an approved lot.
  9. Agree on referee testing if laboratories remain different.
  10. Document root cause, disposition, corrective action and trend follow-up.

Frequently Asked Questions

Can dimethyl silicone oil viscosity change during normal storage?

A sealed, conforming product stored as recommended should generally remain stable within its specification. Apparent change is often caused by temperature, method or sampling. Open-package contamination, repeated heating or unusual exposure must be assessed separately.

Why is our result lower than the supplier COA?

Check sample temperature, unit, method, density conversion, residual solvent, wrong grade and transfer-line contamination. Test a shared sealed sample before concluding that the supplier result is wrong.

Why does a rotational viscometer disagree with a capillary result?

The instruments use different measurement principles and configurations. Temperature, torque range, spindle, speed, container and density conversion can all contribute. Establish method correlation with multiple shared samples.

Should we average an out-of-specification result with a passing retest?

No automatic averaging should be used to erase the original result. Follow an approved deviation and retest procedure, identify assignable cause and report all valid data.

Does higher viscosity always mean polymer degradation?

No. Cold temperature, contamination, evaporation of a low-viscosity component, sampling bias or method error can raise the apparent result. Confirm composition and history before assigning a chemical mechanism.

How many lots should be qualified from a new supplier?

Use multiple independently produced commercial lots, commonly at least three for an initial comparison, then continue risk-based monitoring. Critical applications may require more data and process trials.

What sample should be sent for a complaint?

Send a sealed, traceable portion representative of the affected package, retain another portion, and provide package number, sampling location, storage, method, raw readings and process observations.

Can two viscosity grades be blended to meet a target?

Controlled blending can be technically possible, but the relationship may not be simple arithmetic and the resulting product must meet the full specification. Buyers should not blend rejected lots without approved technical and quality procedures.

Which viscosity method should be written into the contract?

Use the method validated for the product and agreed by both parties, including temperature, units and instrument details. The current ISO 3104 information and ASTM D445 resources explain established kinematic-viscosity principles; applicability to the exact silicone fluid should be confirmed.

What information improves a supplier quotation?

Provide target grade, viscosity method and range, application, operating temperature, critical defects, annual volume, package, destination, documentation and planned trial scale. This allows technical matching instead of price-only substitution.

Related Dimethyl Silicone Oil Resources

For broad grade selection, read the dimethyl silicone oil viscosity selection guide. For application-specific checks, review mold-release viscosity and surface-defect control and textile-finishing emulsion stability. These pages form a topic cluster: this article owns laboratory drift and supplier-lot investigation, while the linked pages address grade selection and end-use performance.

Request a Matched Sample and Viscosity Correlation Package

Send Hengyi Technology your current viscosity grade, method, temperature, acceptable range, application, failure symptoms, annual demand, destination and required documents. We can prepare a commercial-lot sample, COA, technical data and a side-by-side evaluation plan. For an active complaint, include raw readings, instrument configuration, sample history and photographs of package labels and seals.

Contact Hengyi Technology for a dimethyl silicone oil sample, technical review and quotation.

Example Supplier–Buyer Correlation Protocol

Select three lots that span the normal manufacturing range and one stable control fluid. Split each lot into sealed, coded containers using a documented procedure. Both laboratories condition samples at the agreed temperature, then perform at least duplicate independent preparations on different days. Results should include raw flow times or torque readings, instrument identification, calibration status, actual temperature and calculations.

Review within-laboratory precision before comparing means. If one site is imprecise, correct the method first. If both are precise but offset, examine constants, temperature traceability, density conversion and configuration. Agree on a referee laboratory only after routine methods are fully documented. The final report should define expected correlation, maximum acceptable difference and the response when future data exceed it.

Change Control Events That Require Requalification

Not every change affects viscosity, but certain events deserve formal assessment: manufacturing-site transfer, reactor or blending-vessel change, new raw-material source, revised viscosity-adjustment step, new filtration, different package liner, test-method change, filling-line modification and extended shelf life. The supplier should notify the buyer early enough for document review and application testing.

Requalification depth should follow risk. A minor instrument replacement may need method bridging. A site or process change may need multiple lots, full characterization and production trials. Record the decision and acceptance evidence so future complaints are evaluated against a known state rather than memory.

How to Write a Useful Complaint

A useful complaint is specific and evidence-rich. State purchase order, product, grade, lot, package number, quantity affected, receipt date, seal condition, storage, sampling method, test method, temperature, raw readings and application impact. Attach photographs and retain samples. Avoid conclusions such as “polymer degraded” until evidence supports them.

Ask the supplier for batch review, retain result, trend position, deviations, filling and line-clearance confirmation, and proposed joint testing. Define the commercial urgency—line stopped, stock at risk, or preventive review—so resources are prioritized. A clear complaint shortens investigation time and improves the chance of a technically valid corrective action.

Final Purchasing Principle

Dimethyl silicone oil viscosity drift is best controlled through precise specifications, aligned methods, disciplined sampling, representative commercial-lot trials and transparent supplier data. Buying only by nominal cSt grade invites ambiguity. Buying by a defined measurement system and a proven functional window turns viscosity from a recurring dispute into a controlled quality attribute.

Microcrystalline cellulose bulk density and particle size control for tablet compression

Microcrystalline Cellulose Moisture Content: Troubleshooting Tablet Sticking, Capping and Stability

/0 Comments/in , /by

Quick answer: Microcrystalline cellulose moisture content should be controlled as a functional formulation attribute, not only checked against a broad certificate limit. Excess moisture can contribute to tablet sticking, picking, agglomeration and moisture transfer to sensitive APIs. An unusually dry lot can increase static or change compactability in some formulations. The best release strategy combines an agreed LOD or water method, water-activity data when stability is sensitive, sealed sampling, lot trending and a matched compression trial against an approved reference.

When a tablet defect appears after an MCC lot change, avoid immediately blaming the excipient or changing compression force. Confirm the lot identity, packaging, storage and room conditions; repeat moisture testing with a controlled method; compare particle size and density; and reproduce the symptom in matched blends. This guide gives formulation, manufacturing, quality and procurement teams a practical method for doing that.

Microcrystalline Cellulose Moisture Content: Decision Summary

Observation Possible moisture-related mechanism Best confirmation
Sticking increases during the run Humidity uptake, tooling heat or tack Time-resolved defects, punch temperature and matched lot trial
Capping at high press speed Dry material, air retention or elastic recovery Compression profile, precompression and conditioned sample
Assay degradants rise on stability Moisture migration from MCC or package ingress Water activity, compatibility and package study
Supplier and buyer LOD disagree Sampling or method mismatch Shared sealed sample and cross-laboratory protocol
Lot passes COA but behaves differently Functional range narrower than release limit Trend data and buyer-specific compression test

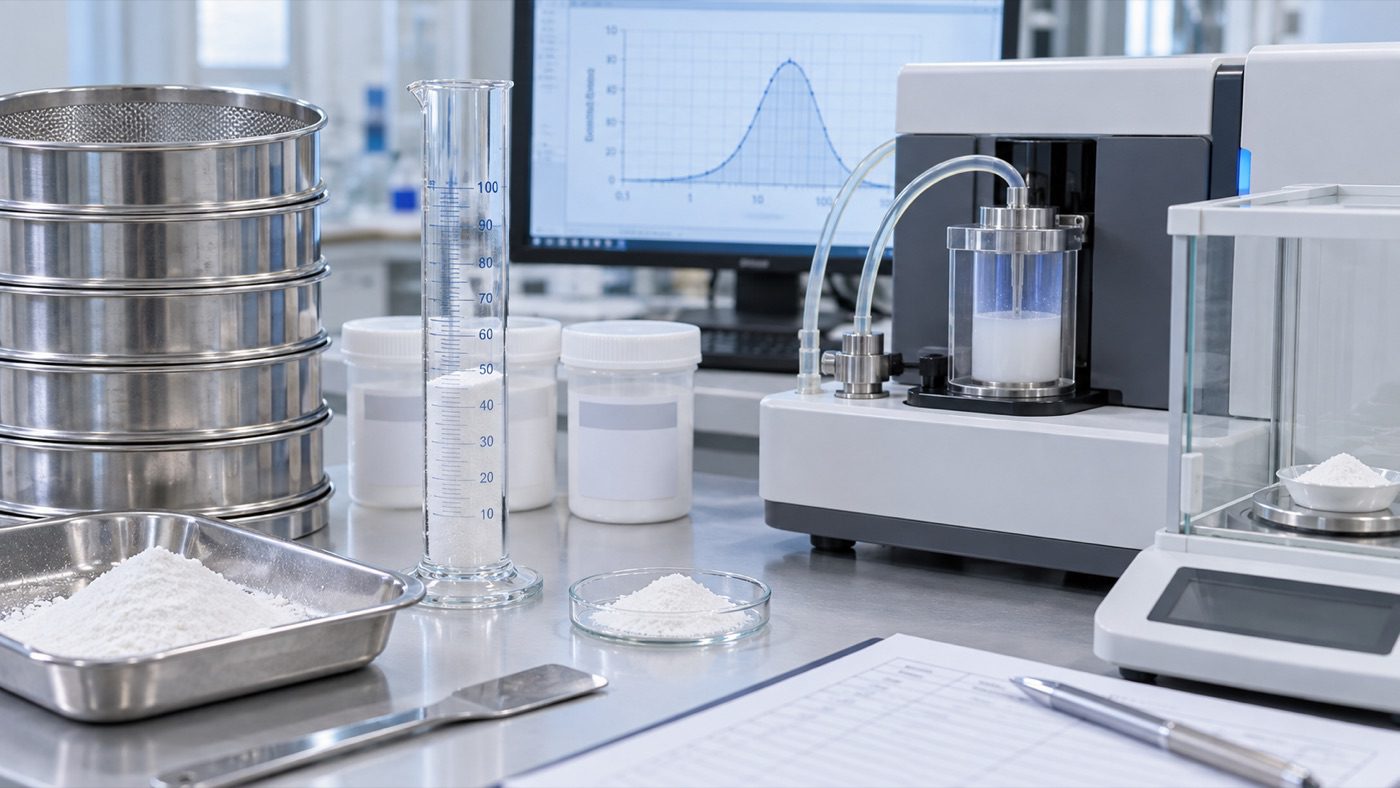

Microcrystalline cellulose moisture content and loss on drying quality control testing

Why MCC Moisture Is a Functional Attribute, Not Just a COA Number

Microcrystalline cellulose is hygroscopic and contains water associated with its porous particle structure. That water can influence hydrogen bonding, plastic deformation, electrostatic behavior, powder flow and the way a blend responds to compression. A result that passes a broad compendial loss-on-drying limit may still sit outside the formulation’s proven operating range. For a robust product, quality teams should distinguish compliance limits from narrower internal alert limits that are supported by development and manufacturing data.

The effect is rarely linear. Very wet MCC can increase sticking, picking, agglomeration and moisture transfer to a sensitive active. Very dry MCC may show more static, poorer compactability or slower stress relaxation in some formulations. The useful target is therefore not “as dry as possible.” It is the range in which the specific grade, active, lubricant, process and packaging repeatedly produce acceptable tablets.

Loss on Drying, Karl Fischer Water and Water Activity

Loss on drying measures mass lost under stated heating conditions. Depending on temperature and time, the result can include water plus other volatile material. Karl Fischer titration is more selective for water, but extraction efficiency, reagent choice and sample dispersion must be validated for cellulose. Water activity measures the energy state of available water and is often more relevant to chemical degradation, microbial risk and moisture migration than total water alone.

These tests answer different questions and should not be treated as interchangeable. LOD is convenient for routine trending, Karl Fischer can support investigations where water specificity matters, and water activity helps explain whether moisture can move into another component or support a reaction. A supplier and buyer should agree on method details, sample conditioning, reporting basis and the relationship between each result and the intended dosage form.

How Humidity Changes MCC During Storage and Processing

MCC exchanges moisture with surrounding air until it approaches equilibrium. The rate depends on relative humidity, temperature, particle size, grade, bag construction, exposure time and airflow. An opened bag left beside a tablet press can change more quickly than a sealed pallet in a controlled warehouse. The same nominal lot can therefore behave differently between the first and last production day if material handling is not controlled.

Record warehouse and compression-room conditions together with material results. Allow cold shipments to equilibrate while sealed before opening so condensation does not form on the powder. Define maximum open-bag exposure, resealing practice and rules for returning partial bags. When an investigation compares retained and production samples, condition them consistently; otherwise the laboratory may be measuring recent environment rather than supplier-lot variation.

Why Excess Moisture Can Cause Tablet Sticking and Picking

Sticking occurs when formulation material adheres to punch faces; picking is localized removal from embossed or recessed areas. Moisture can soften or plasticize components, increase tack at the tooling interface and promote local agglomeration. The risk rises when hygroscopic actives, low-melting ingredients, inadequate antiadherent, worn tooling, high compression temperature or insufficient dwell time are present. MCC moisture may contribute even when it is not the only cause.

Diagnose the mechanism before drying the excipient or increasing lubricant. Map defects by punch station and run time, inspect tooling temperature and surface condition, and compare suspect MCC with a retained approved lot in matched blends. Record ejection force, take-off force, tablet surface, press speed and room humidity. If the defect follows the MCC lot under controlled conditions, moisture level or another correlated physical property deserves deeper review.

How Low Moisture Can Contribute to Capping and Weak Tablets

Capping is separation of the tablet crown after compression or ejection. It is commonly associated with air entrapment, elastic recovery, insufficient bonding, high speed, poor particle-size distribution or tooling geometry. MCC that is unusually dry may have altered compactability and reduced ability to dissipate stress in a formulation that was developed around a higher equilibrium moisture range. Static and poor feeding can add further variability.

Do not attribute capping to MCC solely because an LOD result is low. Compare tensile strength across compression force, dwell time and ejection conditions. Examine precompression, turret speed, feeder settings and blend aeration. A compaction profile using approved and suspect lots is more informative than one hardness value. If controlled moisture conditioning restores performance without changing other variables, the evidence supports a material-moisture mechanism.

Moisture Migration to Sensitive APIs and Excipients

In a multicomponent blend, water can migrate from the ingredient with higher water activity to the ingredient with lower water activity even when total moisture values appear acceptable. This matters for hydrolysis-prone actives, effervescent systems, amorphous dispersions, probiotics and moisture-sensitive coatings. MCC can act as a moisture reservoir because of its porous structure, while the package determines whether the system gains or loses water over shelf life.

Compatibility studies should measure the complete formulation, not only each incoming material. Use representative ratios, realistic temperature and humidity, and the proposed container-closure system. Monitor assay, degradants, dissolution, hardness, friability and water activity over time. If a low-moisture MCC grade is considered, confirm its compactability and flow rather than assuming that lower LOD automatically improves stability.

Sampling MCC Without Creating a False Moisture Result

Moisture results are vulnerable to sampling error. A top-of-bag sample may have a different exposure history from material in the center. Leaving the sample jar open, using a warm container, transferring powder through humid air or testing immediately after a cold shipment can change the result. A composite sample can also hide a damaged bag or wet pallet position that should be investigated separately.

The sampling procedure should define bag selection, sampling depth, tool, sample quantity, container barrier, headspace, sealing, label information and maximum time to test. Retain individual increments when shipment damage or heterogeneity is suspected. Use containers demonstrated to prevent moisture exchange and avoid repeatedly opening the same retained sample. Photographs of packaging condition and pallet position strengthen the investigation record.

Method Variables That Change LOD Results

LOD depends on sample mass, layer thickness, oven type, temperature, drying time, airflow, endpoint definition and cooling practice. A thin sample in a forced-air oven can give a different result from a thick sample in a static oven. If the method uses “dry to constant mass,” the weighing intervals and desiccator conditions must be specified. Thermogravimetric instruments add precision but still require a defined program.

Before comparing supplier and buyer data, exchange method details and test a shared sample. Include replicate preparations and a retained reference. If two laboratories remain offset but internally precise, establish a justified correlation rather than forcing identical numbers. Specification limits should be wider than the combined measurement uncertainty unless a validated guard-band approach is used.

Building a Moisture Trend for Lot Release

A single pass/fail number provides little warning of drift. Plot MCC moisture by supplier, manufacturing site, grade, lot and receipt date. Add warehouse conditions, package observations and key process outcomes such as tablet weight RSD, sticking rate, tensile strength, friability and disintegration. Trends can reveal a shift within specification before it becomes a deviation.

Set an internal alert band from qualified lots and product capability, not from an arbitrary fraction of the official limit. An alert should trigger review or additional testing; it need not mean automatic rejection. If repeated edge-of-range lots correlate with poor performance, use the evidence to revise the purchase specification, choose a different grade or strengthen supplier process control.

Incoming Inspection Plan for MCC Moisture Risk

For an established supplier with capable history, release may use identity, packaging inspection, COA review and a rapid moisture check at a defined frequency. New suppliers, new sites, damaged shipments and formulation changes justify enhanced testing. High-risk products may require each-lot LOD or Karl Fischer plus a short compression or blend evaluation. Low-risk products may use periodic verification backed by supplier qualification.

The plan should state who reviews the data, which method applies, how samples are conditioned, what constitutes an alert, when a lot is quarantined and how a concession is approved. Never blend a suspect lot with conforming material before the original evidence is preserved. Retain enough sample for repeat analysis, application testing and supplier referee work.

Troubleshooting Sticking: A Controlled Experiment

Prepare matched blends using the suspect MCC lot and an approved retained lot. Keep API, other excipients, lubricant lot, order of addition, mixing time, blender fill and hold time constant. Compress both blends at low, target and high press speeds with defined precompression and main compression. Record room humidity, punch temperature, ejection force, take-off force and defect location.

If possible, add a conditioned portion of each MCC sample at a second moisture level. This creates a small factorial study that separates supplier-lot effects from moisture effects. Randomize run order and clean tooling consistently. A conclusion is credible only when the sticking response follows the controlled variable and is repeatable; an improvement after many simultaneous setting changes is not proof.

Troubleshooting Capping and Lamination

Start by determining when the defect appears: immediately at ejection, after dedusting, during coating or during friability testing. Check tablet thickness, tensile strength, compression force, precompression, dwell time, turret speed and ejection. Examine blend aeration and feeder recirculation. Compare density and particle-size data because an apparent moisture problem may actually be a die-filling or air-release problem.

Use a compaction simulator or instrumented rotary press when available. Plot tensile strength and elastic recovery against compaction pressure for approved and suspect lots. Evaluate sensitivity to lubricant mixing because MCC is plastically deforming and over-lubrication can weaken bonding. Moisture conditioning should be performed in sealed, controlled environments with confirmed final values, not by exposing open trays to an uncontrolled room.

Low-Moisture MCC Grades: When They Help and When They Do Not

Low-moisture MCC grades can reduce water introduced into formulations containing hydrolysis-sensitive actives or reactive ingredients. They may also support products manufactured in dry rooms or packaged with demanding stability targets. However, grade names do not define universal performance. Particle size, density, morphology and manufacturing route may differ along with moisture.

Qualification should compare at least three representative lots and use the actual formulation. Measure flow, blend uniformity, tablet weight, tensile strength, friability, disintegration, dissolution and stability. Include packaging and realistic hold times. A low initial LOD offers little benefit if the material rapidly equilibrates during open handling or if the finished package allows moisture ingress.

Packaging, Shipping and Warehouse Controls

MCC packaging should protect against moisture exchange, contamination and physical damage throughout the supply chain. Buyers should confirm bag construction, liner material, closure, net weight, pallet wrap and container loading. Sea freight can expose material to long temperature cycles and condensation risk. Wet cartons, torn liners, compacted bags and mixed labels require quarantine and documented assessment.

Warehouse controls include dry, clean storage away from walls and floors, defined temperature and humidity, first-expiry-first-out management and inspection of partial bags. The receiving team should record container condition and seal information. A supplier quotation should state packaging and storage conditions explicitly because the lowest unit price does not compensate for moisture excursions, rejected batches or unstable tablet production.

Supplier Qualification and Change Control

A reliable MCC supplier should provide current specifications, representative COAs, method summaries, manufacturing-site information, quality-system evidence, traceability, stability or retest rationale and notification rules for significant changes. For moisture-sensitive use, ask how drying, milling, blending, packaging and in-process humidity are controlled and how out-of-trend data are investigated.

Approval should be based on multiple commercial lots, not a specially selected laboratory sample. The quality agreement should define numerical reporting, deviations, complaints, retained samples, change notification, audit expectations and referee testing. Procurement should evaluate technical response time, lead-time reliability and continuity planning together with price.

Connecting MCC Moisture to Finished-Product Stability

A finished tablet is a dynamic system. Water can redistribute among MCC, API, disintegrant, binder, coating and headspace until equilibrium is reached. Temperature changes can accelerate movement and chemical reactions. Stability failures may therefore emerge even when all incoming components passed their individual moisture limits.

Development should use moisture sorption data, water activity and accelerated stability to identify sensitive ranges. Compare proposed packages under realistic and stressed conditions. Trend degradants, dissolution, hardness, friability and disintegration. When a stability issue appears, analyze retained raw materials and finished tablets together; testing only the current MCC inventory may miss what happened during manufacture.

Procurement Specification and RFQ Checklist

A useful RFQ states the MCC grade, dosage form, manufacturing route, target particle-size profile, bulk-density range, moisture method and limit, preferred typical range, required pharmacopoeias, microbial limits, packaging, annual volume, destination and documentation. It should distinguish mandatory release requirements from development preferences.

Ask for COAs from at least three recent lots and samples linked to those lots. Request method details, typical trend data and change-control commitments. Tell the supplier the failure mode you are trying to prevent—sticking, capping, low hardness, moisture degradation or variable flow—so technical staff can recommend an appropriate grade rather than simply matching a commercial name.

Lot-Release Workflow

  1. Verify manufacturer, site, grade, lot, packaging and transport condition.
  2. Keep the sample sealed until it reaches the specified test temperature.
  3. Review COA moisture, method, historical trend and internal alert range.
  4. Measure LOD or water content using the approved method with controls.
  5. Compare particle size, density and morphology when performance changed.
  6. Quarantine atypical material while evidence and retained samples are preserved.
  7. Run a matched formulation and compression study against an approved lot.
  8. Assess water activity and compatibility when chemical stability is at risk.
  9. Document the decision, concession if any, and supplier corrective action.
  10. Update specifications or handling controls only from repeatable evidence.

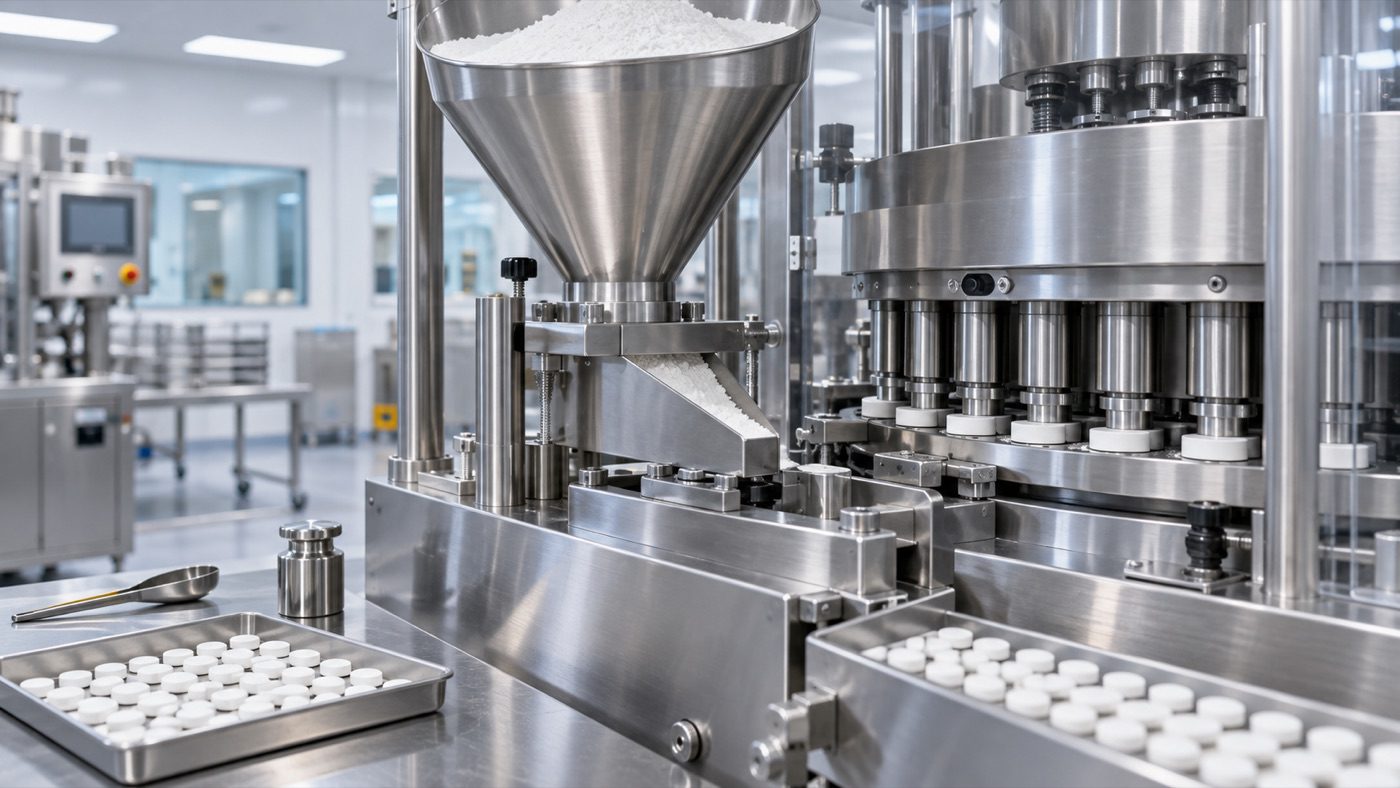

Tablet sticking and capping investigation for microcrystalline cellulose moisture variation

Frequently Asked Questions

What is a typical microcrystalline cellulose moisture content?

Typical values depend on grade, method and conditioning. Do not use a generic internet range as a release specification. Start with the supplier specification and pharmacopoeial requirements, then establish a formulation-specific operating range from qualified lots and stability data.

Is loss on drying the same as water content?

No. LOD measures total mass lost under defined heating conditions and may include water plus other volatiles. Karl Fischer is more selective for water. The methods can correlate, but they should not be substituted without validation.

Can high MCC moisture cause tablet sticking?

It can contribute by increasing tack, softening components or promoting agglomeration, but tooling, temperature, formulation, press speed and lubrication must also be checked. Use matched-lot compression trials before assigning cause.

Can very dry MCC cause capping?

Unusually dry MCC may alter compactability, static behavior and stress relaxation in some formulations. Capping is multifactorial, so also evaluate aeration, dwell time, particle size, lubrication and tooling.

Should MCC be dried before tablet production?

Not routinely. Uncontrolled drying can change performance and may move material outside the qualified state. Dry only under an approved, validated process supported by formulation data and quality oversight.

How should an opened MCC bag be stored?

Reseal it promptly in a demonstrated moisture-barrier system, label opening date and remaining quantity, and store under approved conditions. Define a maximum open-bag time based on risk and data.

Why does supplier LOD differ from our laboratory result?

Sampling, humidity exposure, oven program, sample layer, balance handling and endpoint rules can create differences. Exchange methods and test a shared, sealed sample before opening a supplier complaint.

Is lower water activity always better?

No. Lower water activity can reduce some degradation or microbial risks, but the formulation still needs acceptable compaction, flow and disintegration. The correct target balances stability and manufacturability.

How many MCC lots should be qualified?

Use multiple independently produced commercial lots—commonly at least three for a meaningful initial comparison—plus ongoing monitoring. The exact plan should follow product and regulatory risk.

What should buyers send when requesting an MCC sample?

Send the current grade, application, process, tablet weight, API loading, moisture sensitivity, particle-size and density targets, annual demand, destination, standards, documentation needs and planned trial scale.

Related MCC Qualification Resources

For grade and flow selection, read the MCC 101 vs 102 comparison and the MCC bulk density and particle-size troubleshooting guide. Buyers can review the Hengyi microcrystalline cellulose product page and request a sample linked to a commercial lot.

For excipient-quality frameworks, consult the current resources of the International Pharmaceutical Excipients Council Europe and the official USP excipients information. Apply the current pharmacopoeial and regulatory requirements for the target market.

Request a Technically Matched MCC Sample

Send Hengyi Technology your current MCC grade, dosage form, API loading, manufacturing route, press speed, moisture method and range, particle-size profile, annual volume, destination country and required documents. We can organize a representative sample, COA review and side-by-side qualification plan focused on the failure mode you need to prevent.

Contact Hengyi Technology for a Microcrystalline Cellulose sample, technical data and quotation.

Moisture Sorption Isotherms and Grade Comparison

A moisture sorption isotherm shows how a material’s equilibrium water content changes with relative humidity at a defined temperature. It helps explain why two MCC grades that leave the factory with similar LOD values can behave differently after exposure to the same room. Differences in particle structure, accessible surface and manufacturing history can change uptake and release behavior. Dynamic vapor sorption data can therefore support grade selection for moisture-sensitive formulations.

Use isotherms as development evidence rather than routine release tests. Compare grades over the humidity range expected during dispensing, blending, compression and storage. Look for hysteresis between adsorption and desorption, because material that has been wetted and redried may not return to its original state. Link the result to compactability, flow, water activity and stability; an isotherm alone cannot define a suitable formulation.

Statistical Acceptance and Guard Bands

A moisture specification should reflect product risk, supplier capability and analytical uncertainty. If routine method variation is large relative to the proposed range, tightening the limit creates false rejects without improving patient or customer protection. Estimate repeatability across preparations, analysts and days. Where supplier and buyer methods differ, include between-laboratory variability and sample-handling uncertainty.

Use a contractual release range for formal acceptance and a narrower internal alert range for trend review. A guard band may be appropriate when the consequence of exceeding a limit is severe, but it must be justified and documented. Control charts can distinguish a stable process from a gradual shift. Investigate runs, steps or sustained movement rather than reacting to every isolated result within normal method noise.

Environmental Controls During Dispensing and Compression

Room relative humidity should be selected from formulation data, operator needs and equipment capability. A very dry room may reduce moisture uptake but increase electrostatic charging, dust and handling difficulty. A humid room may reduce static while increasing sticking or chemical risk. Record actual conditions at the powder, not only the building set point, and consider local heat from presses, motors and air movement.

Define exposure time from bag opening through compression. Use closed transfer where justified, minimize long open holds and avoid placing material beside doors or uncontrolled air streams. If production pauses, specify whether the blend remains acceptable, requires a moisture check or must be protected in a sealed intermediate container. Environmental excursions should be assessed against time and material response, not only against a single room reading.

Example Investigation: A Lot That Passed but Stuck

Consider a direct-compression product that begins sticking after a new MCC lot is introduced. The COA LOD is within specification, but the value is near the upper historical edge. The room humidity is also higher than usual and punch temperature rises during the run. A weak investigation might reject the lot immediately. A stronger investigation compares the suspect lot with a retained lot, repeats LOD on sealed samples, monitors water activity and compresses matched blends at controlled speed and temperature.

If sticking follows both MCC moisture and punch temperature, corrective action may require a narrower alert range plus environmental or tooling controls. If the retained lot also sticks under the same hot, humid condition, the supplier lot is not the sole cause. This evidence-based approach prevents an unjustified claim and improves the process design space.

Suggested Functional Specification Fields

Field What to define Why it matters
Test method LOD or Karl Fischer procedure, sample mass and endpoint Makes results comparable
Release limit Contractual minimum or maximum as justified Controls formal lot acceptance
Typical range Supplier process range from representative lots Supports sourcing and trend review
Internal alert Product-specific range linked to performance Triggers additional assessment
Water activity Method, temperature and investigation trigger Supports stability and migration risk
Packaging Barrier, liner, closure and partial-bag handling Preserves the qualified state
Change control Site, process, drying, milling and package changes Prevents unassessed variability
Titanium dioxide for water-based architectural coatings laboratory testing

Titanium Dioxide COA Values: Which Results Matter for Lot Release?

/0 Comments/in , /by

Quick answer: The most useful titanium dioxide COA values for lot release are identity or grade, TiO2 content, rutile content where relevant, brightness or L*a*b* color, tint strength, undertone, moisture, pH, oil absorption, sieve residue, and an agreed dispersion result. However, a COA should be used as a supplier process-control record—not as proof that the pigment will deliver opacity, viscosity, gloss, durability, or processing stability in the buyer’s formula. A robust release system combines certificate review, risk-based incoming tests, retained samples, trend limits, and a fast fit-for-use test.

A titanium dioxide shipment can meet every printed certificate limit and still behave differently in paint, ink, masterbatch, paper coating, adhesive, or another formulated product. That does not automatically mean the pigment is defective. It means the buyer must distinguish three questions: is the shipment the ordered grade, is the lot consistent with the approved supply, and does it remain fit for the intended formulation? This guide gives procurement, quality-control, and formulation teams a practical method for answering all three without duplicating every supplier test or relying on a certificate alone.

Why Titanium Dioxide COA Values Need Technical Interpretation

A certificate of analysis is normally a summary of results obtained on a defined lot using the producer’s methods. It is valuable evidence of traceability and process control. It is not a complete description of particle morphology, surface treatment, aggregate structure, dispersant demand, or interaction with the buyer’s binder. Two lots may show nearly identical chemical assay and brightness yet produce different millbase viscosity or gloss because the application response depends on properties that are difficult to reduce to one certificate number.

The release decision should therefore use a hierarchy. First, confirm identity, documentation, packaging, and traceability. Second, check critical COA values against the agreed specification and historical trend. Third, perform a small number of incoming tests chosen for the actual failure risks. Finally, when the formulation is sensitive or the supplier has changed, use a controlled application test against a retained approved lot. This hierarchy protects production without turning receiving inspection into a second pigment factory laboratory.

The Three Layers of a Good Lot-Release Specification

Layer 1: non-negotiable identity and compliance

The first layer answers whether the correct material can legally and operationally enter the plant. Confirm manufacturer, manufacturing site when specified, commercial grade, lot number, net weight, packaging type, production date, shelf life or retest date, and purchase-order reference. Review the current safety data sheet and any market-specific declarations required by the end use. A lot with excellent color data but ambiguous identity or broken traceability should not be released.

Layer 2: supplier process-control indicators

The second layer contains numerical properties that show whether the lot sits inside the producer’s approved process window. Typical values include TiO2 content, rutile content, brightness, tint strength, undertone, moisture, pH, oil absorption, and coarse residue. These are meaningful only when the test method, sample preparation, units, reference standard, and reporting precision are understood. A specification copied from another producer can be misleading because methods and reference pigments may differ.

Layer 3: buyer fit-for-use indicators

The third layer links the pigment to production and customer performance. Examples are standardized millbase viscosity, dispersion time, Hegman fineness, contrast ratio, tint strength in the buyer’s system, gloss, rub-up, filter pressure, screen residue, film color, and accelerated weathering for high-risk changes. Not every incoming lot needs the full panel. The buyer should define a short release test and reserve the extended panel for qualification, investigation, or periodic verification.

Core Titanium Dioxide COA Values and What They Really Mean

COA value What it can indicate What it cannot prove Useful buyer check
TiO2 content Composition and consistency with grade design Opacity, dispersion, durability, or suitability Verify method and trend; do not rank grades by assay alone
Rutile content Crystal-form control in rutile grades Surface-treatment quality or weatherability by itself Use XRD or agreed producer method during qualification
Brightness / L* Lightness under stated preparation and instrument conditions Finished-product whiteness or undertone in every binder Compare using one preparation, backing, illuminant, and geometry
Tint strength Relative scattering performance versus a reference pigment Hiding in the buyer’s formula at equal cost Repeat with an approved retained reference and fixed black paste
Undertone / b* Relative blue or yellow tone under the specified test Final shade in colored or optically brightened formulas Check both masstone and reduced tint when shade is critical
Moisture / volatiles Drying, storage, and handling consistency Absence of bound water or all volatile species Confirm before high-temperature plastics processing
pH Behavior of a defined aqueous suspension Finished-formula pH or full surface chemistry Match solids, water quality, time, and temperature
Oil absorption Relative vehicle demand under a specified endpoint Exact viscosity in a real resin system Use as a trend and confirm with a dispersant or viscosity ladder
Sieve residue Coarse contamination or agglomerate risk above a chosen size Complete particle-size distribution or dispersion quality Inspect retained residue and identify foreign matter
Dispersibility Response in the supplier’s defined test system Processing performance in every plant Agree on a buyer-relevant method and endpoint

Laboratory review of titanium dioxide COA values and incoming lot-release tests

TiO2 Content: Important, but Frequently Overinterpreted

TiO2 assay confirms composition and helps identify whether the material fits the declared grade design. It does not directly rank optical performance. Commercial pigments contain surface treatments selected to improve dispersion, durability, and compatibility. A slightly lower TiO2 assay can accompany a purposeful coating package that produces better performance in a demanding system. Conversely, a high assay cannot compensate for poor dispersion or unsuitable treatment.

Buyers should ask which analytical method is used, whether the result is reported on an as-received or dry basis, and how uncertainty is handled. Use assay as an identity and process-control measure. Evaluate hiding efficiency through a controlled contrast-ratio or scattering test, preferably at equal dry-film thickness and, for commercial comparison, at equal formulated cost.

Rutile Content and Crystal Form

For a rutile pigment, high rutile conversion is expected because crystal form influences refractive index, photochemical behavior, and performance. X-ray diffraction can estimate anatase content, but sample preparation, calibration, and detection limits matter. A percentage on the COA should be tied to a named method. It should not be interpreted as an exterior-durability guarantee.

Durability also depends on lattice quality, particle size, inorganic coating, organic treatment, dispersion, binder, pigment volume concentration, film formation, and exposure. The buyer should use crystal-form data to confirm grade consistency, then validate durability with a suitable coating or polymer weathering program when the application requires it.

Brightness, L*a*b* Color and Undertone

Brightness results depend on preparation

Dry-powder brightness is fast, but powder packing, surface texture, moisture, and instrument geometry influence the reading. Paste or film methods can be more relevant but introduce vehicle, dispersion, film thickness, backing, and drying variables. The certificate must state enough method detail for the number to be interpreted.

Separate lightness from undertone

L* describes lightness, while a* and b* describe red-green and yellow-blue axes under defined conditions. A small b* shift may be commercially important in blue-white products yet irrelevant in a warm off-white formula. Set acceptance limits from customer tolerance and process capability, not from an arbitrary desire for the bluest number.

Trend data is more powerful than a single limit

A broad specification may accept lots that are individually compliant but visibly different in a sensitive formulation. Plot supplier and internal color values over time. A trend toward one edge of the specification can justify early technical discussion before a customer complaint occurs. Statistical alerts should trigger review, not automatic rejection, unless the purchase agreement defines them as release limits.

Tint Strength: A Relative Test That Requires a Stable Reference

Tint strength estimates the light-scattering contribution of titanium dioxide after it is mixed with a standardized dark paste or colored medium. It is inherently comparative. Results depend on the reference pigment, black paste, mixing energy, ratio, drawdown, film thickness, conditioning, instrument, and calculation. A producer value of 102 and a buyer value of 99 may both be correct if the methods differ.

For incoming control, retain enough approved reference material under sealed, stable conditions. Prepare reference and candidate in the same session, randomize sample order when practical, and run replicates. Monitor method repeatability with control charts. If the internal test cannot distinguish normal preparation noise from a meaningful lot shift, it should not be used as a strict rejection criterion.

Moisture and Volatile Matter

Moisture can affect powder flow, bag discharge, feeding, dispersion, and high-temperature processing. In plastics, excess water may contribute to voids, silver streaks, or unstable output, particularly when the polymer or additive package is moisture sensitive. In waterborne paint, a small moisture shift may be less important to performance but can still change mass balance and signal storage damage.

Clarify test temperature, time, sample mass, and whether the method measures loss on drying rather than water specifically. Inspect bags and pallets for wetting, condensation, tears, or caking. If moisture is critical, correlate certificate and internal results with hopper behavior, feeder stability, extrusion pressure, and visual defects rather than treating the number in isolation.

pH and Conductivity

Titanium dioxide pH is usually measured in a defined aqueous suspension or extract. Result differences can arise from solids concentration, water purity, agitation, equilibration time, temperature, and electrode condition. A pigment pH result does not directly predict the pH of a formulated paint, yet a significant shift can indicate a change in soluble species or surface condition.

Conductivity is not always printed on the COA, but it can be a useful supplemental indicator for waterborne systems. Elevated soluble ions may change dispersant adsorption, latex stability, or rheology. When a waterborne formulation is sensitive, trend pH and conductivity together and confirm suspicious lots through a small millbase test.

Oil Absorption and Vehicle Demand

Oil absorption is commonly used as a relative measure of liquid demand. It reflects the combined influence of particle and aggregate structure, accessible surface, packing, and operator-defined endpoint. It is useful for trend monitoring, but it is not a universal viscosity predictor. A real formulation contains resin, solvent or water, dispersant, surfactant, fillers, rheology modifiers, and shear history that the basic oil test does not reproduce.

When oil absorption changes, run a controlled dispersant-demand or millbase-viscosity ladder before adjusting production. The detailed titanium dioxide oil absorption test guide explains how to use the result without confusing method variation with pigment performance.

Sieve Residue, Coarse Particles and Foreign Matter

Residue testing screens for coarse agglomerates, contamination, or process debris above a defined mesh or aperture. It is particularly important where pigment passes through fine filters, printing equipment, fiber spinnerets, thin films, or high-gloss finishes. The mass alone does not identify the cause. Retain and inspect the residue using microscopy or other appropriate analysis.

Specify wet or dry procedure, dispersing conditions, sieve opening, washing, drying, calculation, and reporting limit. A result reported as “nil” may mean below the laboratory’s reporting threshold, not absolute absence. If the buyer requires a tighter limit than the standard certificate, the requirement and method should be agreed before purchase.

Particle Size: Why One D50 Number Is Rarely Enough

Laser diffraction reports an apparent size distribution that depends strongly on dispersion preparation, refractive-index settings, obscuration, and the instrument’s calculation model. For titanium dioxide, the measured distribution often describes aggregates and agglomerates rather than isolated primary crystals. A lower D50 is not automatically better; an aggressive preparation can make one sample appear finer without representing plant dispersion.

If particle-size data is used for release, lock the preparation energy, dispersant, concentration, sonication, measurement settings, and acceptance statistic. Review D10, D50, D90, and any coarse tail rather than one median. Correlate the distribution with Hegman fineness, gloss, filtration, pressure rise, and finished-film appearance.

Which COA Values Should Be Critical, Major or Informational?

A risk classification prevents every number from being treated equally. A critical item is one whose failure can cause legal noncompliance, safety concern, wrong identity, or severe production risk. Examples may include grade identity, traceability, required regulatory declaration, and contamination limits for a controlled market. A major item is strongly connected to production or customer performance, such as tint strength, moisture, residue, or color for a sensitive product. An informational item supports trend review but is not independently used to reject a lot.

The classification must reflect the buyer’s use. Moisture may be major for a high-temperature plastic process but informational for a robust waterborne coating. Undertone may be major in white appliance coatings and less important in a deeply colored formula. Document the rationale, owner, test frequency, and escalation route for each parameter.

How to Set Acceptance Limits Without Creating False Rejects

Start with qualification data

Test several lots from the proposed source, not one unusually good sample. Compare them with approved retained lots and production history. Define which property differences are both statistically real and commercially important. A tight limit with poor test reproducibility creates disputes without protecting the customer.

Understand measurement capability

Estimate repeatability and, where multiple laboratories are involved, reproducibility. Use reference samples, duplicate preparation, instrument checks, and analyst training. The guard band between normal variation and the specification limit should be wide enough for reliable decisions. Round results only after calculation and according to the agreed method.

Separate specification limits from internal alert limits

The contractual specification determines formal acceptance. A narrower internal alert band can identify drift and trigger additional testing. This arrangement enables early action without rejecting conforming material. If repeated alerts correlate with application change, use the evidence to revise the agreement with the supplier.

Risk-Based Incoming Inspection Plan

Supply situation Recommended release approach Extended action
Established grade, stable supplier, capable history Identity, packaging, COA review, selected rapid checks Periodic verification and trend review
New supplier or manufacturing site Full documentation and multi-lot fit-for-use comparison Pilot and production trial before unrestricted approval
Supplier process or surface-treatment change Hold for technical review and application testing Weathering or end-use validation where relevant
Shipment damage, caking, moisture evidence Quarantine affected units and sample representatively Moisture, contamination, dispersion, and packaging investigation
Lot near an alert or specification limit Repeat by approved method and compare retained sample Fit-for-use test and supplier discussion
Customer complaint linked to lot transition Preserve records and samples; stop uncontrolled adjustment Side-by-side remake with approved and suspect lots

Side-by-side dispersion and drawdown testing for titanium dioxide lot release

A Fast Fit-for-Use Test for Incoming Lots

A useful release test should be short, repeatable, sensitive to the buyer’s real failure mode, and linked to a clear decision. For coatings, a small standardized millbase may measure addition behavior, dispersion time, maximum temperature, Hegman fineness, pH, density, viscosity, tint strength, contrast ratio, gloss, and rub-up. For plastics, a small masterbatch or letdown trial may monitor feeding, torque, pressure, filter rise, dispersion defects, color, opacity, and moisture-related flaws.

Always run the candidate against a retained approved lot with the same raw materials, operator, equipment, energy, temperature, and conditioning. Use equal mass for diagnosis, then equal performance or equal cost for commercial evaluation. Do not release a sensitive formulation because the candidate “looks white” in powder form.

COA Review Workflow for Purchasing and Quality Teams

  1. Match the documents. Confirm purchase order, grade, lot, quantity, manufacturing source if controlled, and current specification revision.
  2. Inspect the shipment. Record seal condition, pallet integrity, bag damage, water exposure, contamination, and label consistency.
  3. Review critical values. Check method, units, result, specification, reporting basis, and unusual qualifiers.
  4. Compare the trend. Look at recent approved lots, internal results, complaints, and production behavior—not only the printed pass/fail status.
  5. Sample correctly. Follow a written plan that represents the lot without introducing moisture or contamination.
  6. Run required incoming tests. Use calibrated equipment and an approved method with reference controls.
  7. Escalate deviations. Quarantine first; investigate before blending, dilution, reworking, or informal concession.
  8. Release with traceability. Record reviewer, date, results, exceptions, and the production batches that consume the lot.

Sampling Titanium Dioxide Bags Correctly

Poor sampling can create more variation than the lot itself. Define how many bags or bulk points are sampled, how locations are selected, whether primary increments are combined, what sampler is used, and how containers are sealed. Avoid sampling only a convenient top bag. Protect the sample from humidity, dust, and cross-contamination.

Keep separate identification for the laboratory sample, retained sample, and any supplier referee sample. Record shipment number, lot, bag or position, date, sampler, and observations. If the lot is heterogeneous or damaged, a composite may conceal a local problem; retain individual increments until the investigation is complete.

Retained Samples and Complaint Resolution

A sealed retained sample is the fastest way to distinguish a new lot effect from method drift or formulation change. Store enough material from approved and suspect lots under controlled conditions. Define retention time based on shelf life, inventory cycle, and complaint window. Use containers that prevent moisture exchange and contamination.

When a complaint occurs, reproduce the product with the suspect lot, the immediately preceding approved lot, and a long-term reference. Keep formulation, additive lots, water, equipment, energy, temperature, and test timing constant. If the effect follows the pigment across controlled repetitions, the supplier receives strong evidence. If it does not, investigate plant conditions and other raw materials before assigning cause.

Supplier Change Control and E-E-A-T Evidence

A trustworthy supplier-qualification program asks for more than a marketing data sheet. Request a current specification, representative COAs from multiple lots, test-method descriptions, manufacturing and quality certifications relevant to the purchase, safety documentation, traceability process, complaint procedure, and formal notification of significant changes. For performance-sensitive grades, discuss inorganic coating, organic treatment, recommended dispersion practice, packaging, storage, and shelf life at an appropriate technical level.

Document who reviewed the evidence and why the grade was approved. Include test dates, equipment, methods, formulation version, reference lot, results, deviations, and production-trial outcome. This experience-based record strengthens E-E-A-T because the article and the purchasing process show how decisions are made, what is measured, and where uncertainty remains. Buyers can review Hengyi titanium dioxide products and request lot-specific documents and samples for a controlled comparison.

Common COA Mistakes

Choosing the lot with the highest TiO2 percentage

This ignores surface-treatment design and real scattering efficiency. Compare application performance and total formulated cost.

Treating supplier and buyer results as interchangeable

Different methods, references, instruments, and conditioning can generate different valid results. Align methods before opening a quality claim.

Using broad certificate limits without trend review

A compliant but drifting result may predict a future problem. Control charts and retained samples reveal changes earlier.

Rejecting a lot on one noisy test

Repeat the approved method, check controls, and confirm with a fit-for-use test. Investigation protects both production and supplier relationships.

Accepting a lot because every COA box says “pass”

The certificate may not cover the buyer’s most important failure mode. A short application test is essential for sensitive formulas and significant changes.

Procurement Checklist for a Titanium Dioxide RFQ

  • Exact commercial grade and approved manufacturing source
  • Intended formulation, process, and most costly failure modes
  • Agreed COA items, methods, units, limits, and reporting basis
  • Buyer fit-for-use test and acceptance criteria
  • Packaging, pallet, labeling, container, and moisture protection
  • Lot traceability, retained-sample policy, and shelf life
  • Required safety, regulatory, and market declarations
  • Change-notification period and requalification triggers
  • Complaint response, referee testing, replacement, and cost responsibility
  • Sample quantity and plan for laboratory, pilot, and production trials

Frequently Asked Questions

Which titanium dioxide COA value is most important?

There is no universal single value. Identity and traceability are fundamental; the most important numerical values depend on the application. Tint strength and color may dominate a white coating, moisture and residue may dominate a polymer process, and durability evidence may dominate exterior exposure. Define the critical property from the failure risk.

Can a COA prove that a TiO2 lot will give good opacity?

No. Tint strength and brightness provide useful indicators, but finished opacity also depends on dispersion, loading, pigment spacing, binder, extenders, film thickness, drying, and application. Confirm with a controlled contrast-ratio or scattering test.

Should buyers retest every value printed on the COA?

Usually not. Verify identity and high-risk properties, audit supplier data periodically, and use a buyer-specific fit-for-use test. Increase inspection when the source is new, performance changes, a result trends toward a limit, or shipment damage occurs.

Why do our tint-strength results differ from the supplier’s?

The laboratories may use different reference pigments, black pastes, ratios, mixing energy, film thickness, conditioning, instruments, or calculations. Exchange methods and samples, then run a controlled cross-laboratory study before concluding that either result is wrong.

Is oil absorption a reliable predictor of paint viscosity?

It is a useful comparative indicator but not a complete predictor. Real viscosity depends on surface treatment, dispersant, water or solvent, binder, fillers, rheology modifiers, solids, temperature, and shear history. Use oil absorption as a trend and confirm it in the intended system.

What should happen when one COA value is out of specification?

Quarantine the lot, verify document and sample identity, repeat the approved method with controls, review uncertainty and history, and notify the responsible supplier contact. Do not blend or adjust the material before evidence is preserved. A formal concession should be risk assessed and documented.

How many lots should be tested when qualifying a supplier?

One sample cannot demonstrate consistency. Evaluate multiple independently produced lots and include laboratory, pilot, and production evidence appropriate to the risk. Continue enhanced inspection until the supplier demonstrates stable capability.

What is the best quick test for a coatings plant?

A standardized small millbase and drawdown against a retained approved lot is highly informative. Measure dispersion behavior, viscosity, fineness, tint strength, contrast ratio, gloss, rub-up, and short-term stability under fixed conditions.

How often should an approved supplier be requalified?

Use a risk-based schedule and requalify after significant manufacturing, treatment, site, method, or specification changes; repeated complaints; major trend shifts; or long supply interruptions. Periodic performance review should continue even when no formal requalification is due.

Conclusion: Turn the COA into a Release System, Not a Checkbox

Titanium dioxide COA values are most useful when they are connected to traceability, method capability, historical trends, and a buyer-specific test. The certificate confirms what the supplier measured; incoming control confirms identity and risk; retained references reveal change; and fit-for-use testing shows whether the lot protects production and customer performance. This layered approach reduces both false acceptance and unnecessary rejection.

For a technical quotation, send Hengyi the intended resin or polymer, process conditions, required color and opacity, current test method, annual volume, packaging, and the failure mode you want to prevent. We can propose a titanium dioxide sample and a side-by-side qualification plan built around measurable release criteria rather than a generic “equivalent grade” claim.

For international method selection, consult the current resources of ISO/TC 35 Paints and varnishes and the official ASTM pigments standards area. Always purchase and apply the current standard required by your market, contract, and laboratory quality system.
