Rutile Sand for Titanium Tetrachloride Production: TiO2 Grade, Impurity Control, Chlorination and Supplier Qualification

/0 Comments/in , /by

Quick answer: Rutile sand for titanium tetrachloride production should be qualified by titanium dioxide content, mineralogy, iron and other impurity profiles, moisture, particle-size distribution, bulk handling, chlorination response, residue behavior, and lot consistency. A high headline TiO₂ value is useful, but it does not by itself predict reactor productivity, chlorine consumption, purification load, waste generation, or total delivered cost.

Natural rutile is an important titanium-bearing mineral feedstock for chloride-route titanium chemicals and metal production. Buyers often compare offers by assay and price, yet commercial performance depends on the complete mineral and process system. Feed preparation, coke quality, reactor design, temperature, gas distribution, impurity volatility, solids removal, and downstream purification all influence the result. This guide explains how producers can screen, trial, specify, and monitor rutile sand without treating any single certificate number as proof of suitability.

For product information and related mineral applications, review Hengyi Technology’s rutile sand page and the site’s technical blog. This article discusses raw-material qualification and quality management; plant-specific chlorination conditions, safety controls, and regulatory requirements must be established by qualified process and EHS teams.

Why Feedstock Qualification Matters

In chloride processing, titanium-bearing feed reacts in a high-temperature, controlled system to form volatile titanium chlorides while other elements form chlorides or remain in solids. Feed variability can change reaction rate, bed behavior, off-gas composition, condenser loading, crude product quality, purification demand, maintenance, and waste. A specification therefore needs to protect the full process, not only the receiving laboratory.

Natural mineral concentrates contain geological variability. Two rutile sands with similar average TiO₂ may differ in grain liberation, inclusions, surface coatings, moisture, fine content, uranium and thorium, iron minerals, silica, zircon, and other accessory phases. A robust approval program identifies which differences are important to the buyer’s equipment and final products.

Define the Intended Process Boundary

Before requesting samples, document the intended reactor type, feed preparation, particle-size window, carbon source, operating temperature range, gas system, solids separation, crude condensation, purification route, product specification, and waste-management limits. Suppliers do not need every confidential operating detail, but they need enough context to provide relevant mineral and quality information.

Separate absolute acceptance limits from information-only values and performance indicators. Absolute limits protect safety, equipment, regulation, or product quality. Information values help characterize the lot. Performance indicators, such as chlorination conversion or residue behavior, may require a buyer-defined test rather than a routine mine certificate.

TiO₂ Content and Mineralogical Form

Total titanium reported as TiO₂ is the first screening parameter because it affects theoretical yield and the mass of non-titanium material entering the plant. However, total assay does not show whether titanium is present as well-liberated rutile, altered phases, intergrowths, or inclusions. Mineralogical examination can explain why feeds with similar chemistry react differently.

Use an agreed analytical method, representative sample preparation, suitable certified reference materials, and duplicate control. X-ray fluorescence is widely used for multi-element screening, while other methods may support referee analysis. State whether results are reported on an as-received, air-dried, or dry basis. Moisture corrections can create apparent disputes when bases are not aligned.

Iron and Transition-Metal Impurities

Iron can occur in the rutile lattice, surface coatings, inclusions, or separate mineral grains. It affects feed value and may increase crude chloride impurity and purification load. Other transition metals can also influence volatile impurity profiles, corrosion considerations, color, and downstream product quality.

A purchase specification should list the elements important to the actual process and define methods and reporting limits. Do not require an enormous element list without a decision rule. Focus on impurities that affect product, equipment, emissions, waste, regulatory obligations, or commercial yield, and periodically perform broader scans to detect unexpected change.

Silica, Zircon, Alumina, and Gangue

Silica-bearing grains, zircon, aluminosilicates, and other gangue add nonproductive mass and may affect residue quantity and physical behavior. Their importance depends on particle liberation, reactor conditions, and solids-handling design. Total SiO₂ or ZrO₂ values are helpful, but particle-level mineralogy can reveal whether impurities are locked inside rutile grains or present as separable particles.

Review the supplier’s beneficiation route, magnetic and electrostatic separation controls, and mineralogical monitoring. A shift in ore source or separation settings can change the impurity association even when bulk assay remains within a broad limit. Change notification should therefore cover meaningful mine, feed, circuit, and process changes.

Calcium, Magnesium, Aluminum, and Alkali Elements

Minor elements can influence chloride formation, solids behavior, corrosion, deposits, and waste. Their practical impact is plant-specific, so acceptance limits should come from process history, controlled trials, material balances, and downstream capability. Avoid transferring a competitor’s specification without understanding its reactor and purification system.

Trend results by shipment and mine campaign. A gradual shift may be more significant than one isolated value. If the trend approaches a warning limit, compare mineralogy, particle size, moisture, and process performance before product quality is affected.

Radioactive Elements and Regulatory Control

Mineral sands may contain trace naturally occurring radioactive materials associated with accessory minerals. Buyers must understand applicable transport, occupational, storage, residue, and waste requirements in every relevant jurisdiction. The International Atomic Energy Agency publishes guidance related to radiation protection, but site obligations must be determined through competent local assessment.

Require reliable reporting for uranium and thorium or other relevant parameters when warranted. Confirm units, basis, sampling, detection limits, and laboratory competence. A supplier should also explain how mineral separation and blending manage variability and how abnormal results are investigated.

Moisture and Drying Behavior

Moisture changes delivered dry mass, flow, storage stability, feed consistency, and drying energy. It can also promote caking or freezing in cold logistics. Specify the sampling and drying method and distinguish free surface moisture from any thermal loss included in another test.

Inspect packaging, hold condition, vessel or container protection, and rain exposure. Take moisture increments throughout unloading rather than relying on one surface scoop. If drying is required, evaluate energy, dust, oxidation, and particle degradation under realistic conditions.

Particle-Size Distribution

Particle size affects flow, segregation, conveying, drying, gas-solid contact, reaction rate, entrainment, and residue. Report a full distribution or defined sieve fractions rather than only one median. Control both oversize and excessive fines. Oversize may react slowly, while fines can become entrained, segregate, create dust, or alter bed behavior.

Agree on dry or wet sieving, dispersion, sample mass, sieve condition, and calculation. Laser diffraction can support fine-particle characterization, but its result is method-dependent and should not be substituted for a contractual sieve method without correlation. Trend the shape of the distribution, not only pass/fail values.

Representative sampling and particle-size testing of rutile sand
Representative splitting, sieve analysis, and multi-element testing are essential because mineral shipments can segregate during handling.

Particle Shape, Density, and Flow

Rounded, angular, rough, or coated grains can behave differently in hoppers and feeders. Bulk density, tapped density, angle of repose, and flow tests may help equipment design and receiving control. Values are sensitive to moisture, fines, conditioning, and test geometry, so use a repeatable internal method.

Observe segregation during transfer and storage. A laboratory sample can meet specification while the front and rear of a shipment feed differently if the size distribution separates. Design sampling and reclaim practices to preserve representativeness, and verify feeder calibration with actual mineral rather than a nominal bulk-density assumption.

Surface Coatings and Beneficiation Residues

Surface films from geological alteration, water quality, reagents, drying, or storage can influence wetting, dust, reaction initiation, and analytical results. Ask the supplier about beneficiation reagents, washing, water recycle, drying, and final magnetic or electrostatic separation. Screen for unexpected organics or salts when process experience indicates a risk.

Do not impose unnecessary purity claims without evidence. Instead, use a combination of supplier disclosure, targeted analysis, and process trial results. Retain samples from approved lots so that a future coating or contamination complaint can be compared with a known baseline.

Representative Sampling of Bulk Rutile Sand

Sampling error can be larger than laboratory error. A mineral shipment contains many tonnes and may segregate by size or density, while the analytical portion is only grams. Use a documented increment plan covering time, location, and flow. Prefer sampling a moving stream with suitable equipment where practical.

Combine increments into a composite only when the decision requires an average; preserve selected increments when variability is important. Reduce sample mass with a correctly operated splitter rather than scooping a convenient portion. Clean equipment between lots, prevent loss of fines, label every container, and maintain chain of custody.

Laboratory Preparation and Analytical Quality

Drying, crushing, grinding, splitting, and fusion can introduce bias or contamination. Define preparation sequence and equipment materials. Monitor blank contamination and carryover. Use certified reference materials, duplicates, control charts, and periodic interlaboratory comparisons. Referee testing should be agreed before a commercial dispute.

Round results only after calculation and report uncertainty where appropriate. Apparent differences near a limit may not be meaningful when sampling and method precision are considered. Establish a retest procedure that uses a retained representative sample and prevents repeated testing until a favorable result appears.

Bench-Scale Chlorination Screening

Where the buyer has a validated and safely engineered method, controlled screening can compare conversion rate, chlorine utilization, residue, impurity volatility, and crude product profile. Such work must be performed only in suitable facilities with trained personnel and approved containment, scrubbing, monitoring, and emergency systems.

Use the same preparation, carbon, gas quality, temperature program, residence criteria, and analytical balance for candidate and control feeds. Include an approved reference material in every campaign. The purpose is comparative qualification, not an unvalidated prediction of full-scale throughput.

Production Trial Design

A plant trial requires a written protocol covering objectives, lot size, blending, storage, feeding, baseline, process window, sampling, mass balance, product and residue tests, safety review, responsibilities, and stop criteria. Establish stable baseline operation before introducing the candidate feed.

Record actual feed rate, gas consumption, temperature profile, pressure, bed or solids indicators, crude production, impurity loading, purification performance, residue, downtime, and abnormal events. Collect feed, intermediate, crude, purified product, and residue samples at defined intervals. Continue long enough to distinguish transition material from steady performance.

Enclosed titanium tetrachloride production process using rutile sand feed
Production qualification should connect feed chemistry and particle behavior with conversion, crude impurity load, residue, and stable operation.

Crude Product and Purification Load

Feed qualification should evaluate more than total titanium conversion. Measure the impurity profile that enters crude condensation and purification. Volatile metal chlorides can alter separation demand, energy, reagent use, equipment loading, and product recovery. Nonvolatile material affects solids handling and waste.

Create a material balance that reconciles feed, titanium product, volatile impurities, residue, and losses within justified limits. An apparently reactive feed can still be commercially unattractive if it increases purification loss, cleaning frequency, or off-specification risk.

Residue and Waste Evaluation

Characterize residue mass, composition, particle size, leach behavior where relevant, moisture, handling, and disposal or recovery options. Waste classification and management depend on jurisdiction and process. A purchase decision must include the cost and capacity of compliant residue handling.

Preserve representative trial residue for investigation. Compare morphology and composition with the approved baseline. Unexpected unreacted cores may indicate coarse particles, mineral locking, insufficient conditions, feed interruption, or gas-distribution issues; the mechanism should be identified before blaming one assay value.

Handling, Storage, and Dust Control

Mineral sand handling requires suitable enclosure, ventilation, housekeeping, conveying, and personal protection based on the site’s exposure assessment and safety data. Avoid unnecessary drop heights and uncontrolled dry sweeping. Inspect silos and hoppers for segregation, bridging, water entry, and cross-contamination.

Packaging should protect the agreed moisture and cleanliness. Define bag, bulk container, liner, seal, pallet, and label requirements. Lot codes must remain visible through receiving and internal transfer. Use first-in, first-out rules when storage time can change moisture or flow.

Supplier Qualification

Review mine and plant location, ore-body control, beneficiation flowsheet, sampling system, laboratory competence, calibration, specifications, release authority, retained samples, nonconforming product, complaint investigation, and change management. Confirm whether material is mined, toll processed, blended, or traded through third parties.

Business continuity matters because approval can require extended trials. Evaluate production capacity, seasonal constraints, logistics routes, port storage, backup equipment, inventory, and emergency communication. A technically suitable product that cannot be supplied consistently creates another form of process risk.

Certificate of Analysis and Traceability

The certificate should identify supplier, product, shipment, production or blend lot, dates, test methods, specification limits, actual results, units, reporting basis, and authorized release. Generic typical values are not a lot certificate. Electronic records should be protected from unauthorized change and linked to retained samples.

Reconcile shipment marks, packing list, certificate, and receiving records before unloading or use. If several production lots are combined, the supplier should explain blending and traceability. The buyer should be able to connect consumed feed to reactor campaigns and finished-product lots.

Change Control

Require advance notification for significant changes in ore source, mine zone, beneficiation, reagents, water system, magnetic or electrostatic separation, drying, sampling, laboratory method, specification, plant, packaging, or subcontractor. Define which changes require document review, confirmatory samples, bench testing, or production requalification.

Internal changes also require review. A new feeder, dryer, carbon source, reactor lining, gas distributor, operating window, condenser, or purification sequence can change feed suitability. Keep an approval matrix that links each rutile source to the process conditions and evidence supporting its use.

Routine Incoming Control

Incoming checks can include identity, packaging, moisture, size distribution, TiO₂, critical impurities, and selected rapid mineralogical or physical tests. Test frequency should reflect supplier performance, shipment size, process risk, and the ability to detect problems before consumption.

Use warning and action limits. Trend values and compare them with conversion, chlorine consumption, crude impurities, residue, and process stability. A multivariable trend often identifies risk earlier than an isolated specification failure.

Total Delivered Cost

Compare cost per tonne of acceptable product, not only cost per tonne of sand. Include dry TiO₂ yield, freight, moisture, preparation, drying, carbon and chlorine demand, conversion, purification loss, energy, residue, waste, maintenance, inventory, sampling, testing, and downtime.

Build a sensitivity model using conservative and expected scenarios. Validate the most influential assumptions during trials. A higher-grade feed may justify a premium, but only when the plant captures the benefit. Conversely, a lower headline assay may be competitive if mineralogy and impurity behavior produce stable high recovery.

Common Failure Modes

Certificate passes but reactor performance declines

Check sampling, moisture basis, particle-size distribution, mineralogy, surface coatings, carbon quality, feed calibration, gas distribution, and operating history. The routine certificate may not include the variable that changed.

Fine content increases unexpectedly

Review beneficiation, drying, handling degradation, transport, unloading, and sampling. Confirm sieve integrity and dispersion. Map fines through the shipment to distinguish production change from segregation.

Crude impurity loading rises

Compare multi-element chemistry and mineral association, then review operating conditions and contamination. Retained feed and residue samples are essential for separating raw-material and process causes.

Residue contains unreacted mineral

Evaluate coarse fraction, locked grains, feed rate, residence, temperature, carbon contact, and gas flow. Perform particle-level examination rather than assuming all unreacted material has the same cause.

Moisture varies during unloading

Investigate water exposure and segregation, then improve increment sampling. Do not average away a wet zone that may cause handling or feed problems.

Approval Checklist

  • Process, product, safety, regulatory, and waste boundaries are documented.
  • Representative samples and multiple lots have been obtained.
  • TiO₂ basis, mineralogy, critical impurities, moisture, and size distribution are verified.
  • Laboratory preparation, methods, references, and referee procedure are agreed.
  • Flow, segregation, storage, drying, and feeding behavior are evaluated.
  • Comparative reaction screening is completed where safely applicable.
  • Production trial has a written protocol, baseline, sampling, and stop criteria.
  • Conversion, crude impurities, purification, residue, waste, and total cost are reviewed.
  • Supplier audit, traceability, change control, and business continuity are accepted.
  • Incoming monitoring and performance trending are implemented.

Frequently Asked Questions

Is the highest TiO₂ rutile always the best feed?

No. Higher TiO₂ generally improves theoretical yield, but mineralogy, impurities, size, reaction behavior, purification load, residue, logistics, and price determine total value.

Why must particle-size distribution be controlled?

Size affects feeding, segregation, entrainment, gas-solid contact, reaction rate, and residue. Both coarse particles and excessive fines can create operational problems.

Can one small sample qualify a mine source?

No. It can support early screening, but representative shipment samples, multiple production lots, and a controlled plant trial are needed for commercial approval.

Which impurities are most important?

The answer is process-specific. Iron, silicon, zirconium, aluminum, calcium, magnesium, vanadium, chromium, manganese, niobium, uranium, thorium, and others may matter depending on product, purification, equipment, emissions, and waste.

Should specifications use typical values?

Typical values describe expected material but are not enforceable limits. Critical parameters need agreed limits, methods, basis, sampling, and response rules.

How often should incoming lots be tested?

Frequency should reflect process risk, supplier capability, historical consistency, shipment size, and detection lead time. Reduced testing should be earned through stable evidence and reversed when trends change.

What should be retained after a trial?

Retain representative feed, carbon, crude or intermediate samples where appropriate, purified product, and residue, together with raw data, process history, photographs, certificates, and mass balance.

Conclusion

Building a Defensible Supplier Comparison

Supplier comparisons should use the same data basis and decision model. Convert assay to a common dry basis, apply consistent freight and handling assumptions, and separate guaranteed limits from typical values. Request the raw particle-size fractions and analytical methods rather than copying rounded figures into a scorecard. When a result is below detection, record the reporting limit; treating every nondetect as zero can distort material balances and risk comparisons.

Begin with mandatory gates for safety, regulation, traceability, and critical process limits. Score only candidates that pass those gates. The weighted evaluation can then include titanium units, harmful impurities, moisture, particle distribution, trial conversion, chlorine and carbon consumption, crude recovery, residue, logistics, technical response, change control, and business continuity. Publish the weighting before commercial bids are opened so that the decision is not redesigned to favor the lowest price.

Use sensitivity analysis because several inputs will be uncertain before a long production campaign. Calculate value under expected, unfavorable, and favorable conversion, impurity, moisture, and freight conditions. Identify the assumptions that change the ranking, then design trials to measure those variables. This converts a debate about opinions into a focused evidence plan.

Shipment Acceptance and Unloading Controls

Before arrival, confirm the shipment identifier, certificate, packing list, seal information, carrier, estimated quantity, and approved storage destination. Inspect vessel holds, containers, bulk bags, or trucks for water ingress, foreign matter, damaged liners, and evidence of mixed cargo. Record seal condition and photographs before unloading. Quarantine material when identity or documentation is uncertain.

The sampling team should follow a predetermined plan and use clean, suitable tools. Sampling only the easily reached surface can miss segregation, wet zones, or contamination. Where automatic stream sampling is unavailable, distribute manual increments across unloading time and location while controlling exposure. Create separate moisture samples promptly in sealed containers and protect particle-size samples from loss of fines.

After unloading, reconcile received mass, packaging count, retained samples, test requests, and storage location. Do not release the lot merely because production needs material. A formal deviation process should document risk assessment, temporary controls, authorization, and final disposition. If conditional use is permitted, preserve enough material and process data to investigate any downstream effect.

Statistical Process and Supplier Monitoring

Single-lot compliance does not demonstrate capability. Trend each important property by time, shipment, production campaign, mine source, and supplier. Review average, range, standard deviation, outliers, and movement toward warning limits. Control charts can reveal a systematic shift while every individual lot remains inside a wide contractual limit.

Connect feed data with lagged plant outcomes. For example, compare fine fraction, iron, silica, moisture, and bulk density with feed stability, conversion, crude impurity concentrations, solids generation, cleaning, and recovery. Use engineering judgment when interpreting correlation: two variables moving together does not prove causation, and operating changes may confound the relationship.

Hold periodic supplier performance reviews with quality, technical, purchasing, logistics, production, and EHS representation. Review trends, deviations, complaints, corrective actions, changes, delivery performance, and future mine plans. Close actions with evidence. A supplier that reports a problem early and implements effective prevention may be lower risk than one with attractive certificates but weak transparency.

Complaint Investigation and Corrective Action

A complete complaint file includes purchase order, shipment and supplier lot, receiving inspection, retained feed, sampling record, analytical raw data, storage history, feeder calibration, carbon and gas lots, reactor conditions, crude and product results, residue, maintenance events, and unaffected comparison material. Protect samples from contamination and document chain of custody.

Start by confirming the problem and measurement system. Repeat analysis with the retained representative sample, reference material, blank, and duplicate. If laboratories disagree, use the pre-agreed referee method. Compare mineralogy and size fractions when bulk chemistry cannot explain performance. Inspect process records for transitions, instrumentation faults, air ingress, feed interruptions, or abnormal residence.

Corrective action should address the verified mechanism. Replacing a shipment may solve immediate supply but does not prevent recurrence. Agree on containment, root cause, responsible actions, effectiveness checks, and change control. Update the specification or monitoring plan only when evidence shows the existing control was insufficient; avoid adding arbitrary tests that do not improve detection or prevention.

Reliable titanium tetrachloride production begins with a feed specification connected to actual process performance. Natural rutile should be selected through representative sampling, complete chemistry and mineralogy, controlled particle and moisture evaluation, comparative trials, and disciplined supplier qualification.

The most effective purchasing teams combine laboratory data with reactor conversion, crude impurity load, purification recovery, residue, waste, and total delivered cost. Retained samples, trend monitoring, formal change control, and periodic supplier review then keep an approved source stable over time. This evidence-based approach protects production better than relying on headline TiO₂ content or a single attractive certificate.

Optical Brightener OB-1 for PVC Profiles: Whiteness, Thermal Stability, Dispersion, Weathering and Supplier Qualification

/0 Comments/in , /by

Quick answer: Optical Brightener OB-1 for PVC profiles should be selected through a controlled formulation and extrusion trial, not by comparing powder appearance alone. The approval program should measure initial color, fluorescence, dispersion, thermal stability, plate-out, migration, weathering, and lot consistency while holding resin, titanium dioxide, stabilizer, lubricant, filler, and processing conditions constant.

Rigid PVC window profiles, decorative trim, cable channels, wall panels, and technical extrusions are judged immediately by their surface color. A small yellow or gray cast can make a technically acceptable profile look aged, contaminated, or inconsistent. Optical brighteners can improve perceived whiteness by absorbing ultraviolet energy and emitting blue-violet light, which visually compensates for unwanted yellow tones. That benefit is valuable, but it is also easy to misuse. Excess dosage may produce a blue cast, uneven fluorescence, poor weathering balance, or misleading laboratory results that do not survive production.

This guide explains how PVC compounders and profile manufacturers can evaluate optical brightener OB-1 as one part of a complete color-control system. It focuses on purchasing specifications, laboratory screening, extrusion trials, quality control, failure diagnosis, and supplier qualification. For a broader product overview, review Hengyi Technology’s optical brightener portfolio and related Optical Brightener Tips.

Why PVC Profile Whiteness Is a System Property

Profile color is not created by the brightener alone. PVC resin undertone, titanium dioxide grade, calcium carbonate color, stabilizer chemistry, lubricant balance, regrind content, processing temperature, residence time, and surface texture all influence the final observation. A brightener can compensate for a modest yellow tendency, but it cannot correct badly degraded polymer, contaminated filler, unstable pigments, or excessive thermal history.

Define the commercial target before selecting an additive. A window profile exposed outdoors has different requirements from an indoor cable duct. The outdoor product must retain color after heat, moisture, and radiation, while an indoor decorative profile may prioritize immediate visual brightness. A formulation intended for coextrusion may also require different migration and interlayer compatibility controls.

How Optical Brightener OB-1 Changes Perceived Color

OB-1 is a high-melting fluorescent whitening agent used in many thermoplastics. Under suitable ultraviolet-containing illumination, it converts absorbed energy into visible blue-violet emission. This emission can reduce the visual effect of yellow light reflected from the substrate. The apparent improvement depends on the illuminant, instrument settings, observer, sample thickness, pigment loading, and surface finish.

Fluorescence should therefore be treated as a measured optical response, not a universal number. Two plaques can appear similar under cool LED lighting yet look different in daylight. A purchasing decision based only on one photograph or one whiteness value is incomplete. Laboratory reports should state the illuminant, observer angle, UV condition, aperture, background, sample conditioning, and number of readings.

OB-1 Versus Titanium Dioxide

Titanium dioxide provides opacity, scattering, hiding power, and a major part of the base white color. Optical brightener contributes fluorescent compensation but does not replace opacity. Reducing titanium dioxide simply because a brightener improves one color reading may expose differences in substrate, wall thickness, gloss, weld lines, and regrind distribution.

Evaluate the two additives as complementary components. First establish an acceptable titanium dioxide and filler system. Then screen the minimum brightener dosage that reaches the visual and instrumental target without creating excessive fluorescence. Readers comparing white pigment options can also review Hengyi Technology’s titanium dioxide information.

Define the PVC Formulation Boundary

Before requesting samples, document the PVC K-value or resin grade, stabilizer family, titanium dioxide grade, calcium carbonate loading and coating, impact modifier, processing aid, lubricant package, pigment or toner, regrind percentage, and intended extrusion conditions. Record restrictions related to heavy metals, volatile substances, odor, food contact, building standards, and regional chemical legislation.

Supplier recommendations are meaningful only when the application window is understood. The same dosage can behave differently in lead-stabilized legacy compounds, calcium-zinc systems, tin-stabilized compounds, and highly filled formulations. Confidential formulation details can be shared under an appropriate agreement, but enough information must be available to identify compatibility risks.

Key Purchasing Specifications

A useful specification should identify the chemical product, appearance, assay or purity method, melting behavior, volatile matter, ash, particle characteristics where relevant, and agreed color or fluorescence test. It should also state packaging, lot identification, shelf life, storage conditions, certificate requirements, change notification, and retained-sample period.

Do not copy numbers from an unrelated data sheet without confirming the method. A numerical limit has little value when sampling, instrument, solvent, temperature, or calculation differs. Critical limits should be supported by a method both supplier and buyer can reproduce. Separate identity tests from performance tests: chemical identity confirms what arrived, while a PVC plaque and extrusion trial confirm how it works.

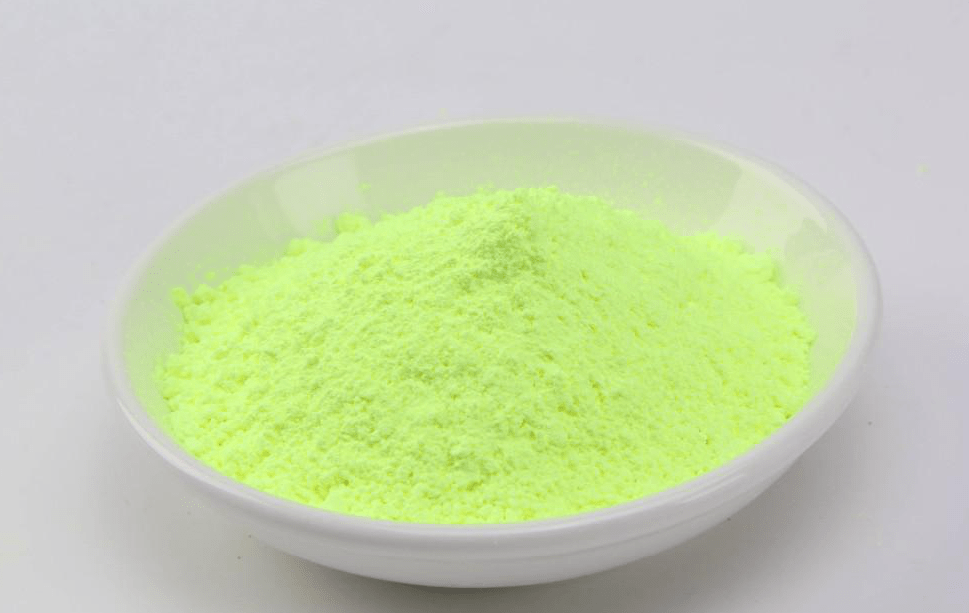

Appearance, Purity, and Particle Handling

Powder appearance can provide an early warning of contamination or moisture exposure, but color alone does not prove performance. Inspect for foreign particles, hard agglomerates, unusual odor, damaged packaging, and poor flow. Record photographs under controlled lighting and retain a sealed reference sample from each approved lot.

Fine powders require controlled charging and effective local ventilation. Review the supplier safety data sheet before handling and follow the appropriate personal protection, housekeeping, spill, and dust-control procedures. The United States Occupational Safety and Health Administration provides general information on combustible dust and workplace dust controls; the actual facility assessment must be specific to the material and operation.

Thermal Stability During PVC Processing

Rigid PVC processing has a narrow thermal window. The additive must tolerate compounding and extrusion without causing color drift or contributing to deposits. Laboratory melting behavior is useful, but the decisive evidence comes from a controlled heat-history study and an actual extrusion trial.

Prepare samples across the realistic residence-time and temperature range. Include normal conditions, a justified upper boundary, and a controlled interruption or long-residence scenario. Measure color immediately and after conditioning. Observe odor, smoke, specks, die deposits, plate-out, gloss, and surface defects. A single attractive plaque made under gentle conditions does not establish production robustness.

PVC profile extrusion trial with Optical Brightener OB-1
Controlled extrusion trials should compare dosage while holding the PVC formulation and thermal history constant.

Dispersion and Dosage Uniformity

OB-1 is normally used at a low concentration, so weighing and distribution errors can be more important than the nominal formulation. Direct addition may work in some processes, while a compatible masterbatch or preblend can improve dosing consistency in others. The carrier, concentration, and feeding method must not introduce a new color, migration, lubrication, or thermal problem.

Use a capable balance, documented addition sequence, suitable premixing time, and a sampling plan that covers the beginning, middle, and end of the batch. Compare multiple plaques or profile sections rather than selecting the best specimen. Uneven fluorescence across the profile can indicate poor premixing, feeder instability, agglomeration, contamination, or inconsistent regrind.

Designing the Dosage Ladder

Start with a zero-brightener control, the current production standard, and several small dosage increments around the expected working range. Do not jump directly from zero to an aggressive maximum. The response is rarely linear across all observations, and the best commercial dosage is often near the beginning of the plateau rather than at the highest measured fluorescence.

Each dosage should be prepared from the same raw-material lots and processed in randomized or well-documented order. If equipment must be cleaned between levels, define the purge procedure. Record actual mass, batch size, mixing sequence, feed stability, screw speed, melt temperature, pressure, line speed, cooling conditions, haul-off, and sample location.

Instrumental Color Measurement

Measure L*, a*, b*, yellowness index, whiteness index, and color difference where these values are meaningful to the specification. Because optical brighteners respond to UV, compare measurements with the instrument’s UV component included and controlled or excluded, as appropriate. The International Commission on Illumination maintains authoritative information on colorimetry and standard illumination.

Standardize sample thickness, orientation, backing, surface, conditioning, aperture, illuminant, observer, and number of readings. Profiles are not flat plaques, so define exactly where readings are taken. Curvature, texture, gloss, and internal cavities can influence results. Production limits should be based on a repeatable geometry that operators can reproduce.

Visual Assessment Under Multiple Lights

Instrument readings support decisions but do not replace trained visual review. Examine samples in controlled daylight, store or office lighting relevant to the market, and a UV-containing source that reveals fluorescence differences. Use neutral surroundings and compare specimens in changing positions so the observer is not biased by location.

Evaluate not only whether the profile is bright, but whether it looks natural. Excessive blue-violet character can be undesirable beside glass, seals, hardware, adjacent panels, or competitor products. Create an approved physical standard and define acceptable deviation rather than relying on verbal descriptions such as brilliant white.

Plate-Out, Deposits, and Surface Quality

Any formulation change should be observed over a production-relevant run length. Inspect die lips, calibrators, cooling tanks, haul-off surfaces, and downstream cutting equipment. Record the time or tonnes processed before cleaning becomes necessary. A low-dose additive may still interact with lubricants, stabilizers, processing aids, or contamination already present in the line.

Surface quality should include gloss, streaking, flow lines, specks, weld lines, roughness, and print or lamination compatibility where applicable. If deposits occur, do not automatically blame the brightener. Repeat the control, review temperature and lubrication, analyze deposit composition when possible, and change one variable at a time.

Migration, Bloom, and Contact Transfer

The optical effect must remain in the intended layer. Evaluate storage at elevated temperature, contact with packaging, stacking pressure, and contact with seals, films, adhesives, or coextruded layers. Inspect both the profile and the contacting material for staining, fluorescence transfer, bloom, or surface haze.

Migration risk depends on molecular compatibility, dosage, plasticizer presence, carrier, temperature, time, and contact material. A successful rigid PVC plaque does not automatically qualify the same additive or masterbatch for flexible PVC. Flexible formulations require their own extraction, migration, and end-use assessments.

Weathering and Long-Term Color Retention

Outdoor profiles require a weathering program that represents heat, radiation, moisture, and cyclic exposure. Optical brightening may change during exposure, while PVC, titanium dioxide, stabilizer, and other additives also change. Track the complete color trajectory rather than reporting only one final value.

Include an approved commercial control and enough intervals to identify early failure. Measure color and fluorescence, then inspect gloss, chalking, cracking, surface roughness, and localized defects. Correlate accelerated testing with outdoor exposure whenever practical. Qualification should be based on the intended service requirement, not on a claim that one additive is universally weather resistant.

Optical Brightener OB-1 PVC profile laboratory color and weathering tests
Use controlled daylight, UV conditions, color measurement, migration checks, and weathered references to qualify the complete PVC formulation.

Regrind and Recycling Boundaries

Although this article does not target recycled PET, PVC profile production may use internal clean regrind. Regrind can carry a different thermal history, particle size, contamination level, and additive concentration. Define the allowable regrind source and percentage during trials. Do not use brightener to conceal uncontrolled contamination or degradation.

Track color by regrind level and number of processing histories. If off-specification profiles are returned to the process, establish rules that prevent cumulative brightener addition from drifting upward. Mass-balance calculations, lot traceability, and periodic confirmation testing are more reliable than visual correction at the mixer.

Masterbatch Versus Powder Addition

A masterbatch can simplify low-level dosing and improve housekeeping, but its carrier and concentration must suit rigid PVC. Ask for carrier identity, thermal behavior, pellet uniformity, dispersion evidence, moisture limits, and recommended addition equipment. Verify that the masterbatch does not alter fusion, lubrication, impact performance, or surface quality.

Powder addition offers formulation flexibility and avoids introducing a carrier, but it demands precise weighing and robust mixing. Compare total delivered cost, process capability, dust control, inventory, changeover, and traceability. The correct form is the one that gives repeatable production within the plant’s actual operating controls.

Production Trial Protocol

Approve the written protocol before material is charged. Define trial objective, formulation, dosage ladder, raw-material lots, equipment, purge, sampling locations, run length, process limits, tests, acceptance criteria, responsibilities, and disposition of trial material. Keep a pretrial meeting brief but specific.

Stabilize the baseline before changing the additive. Record feeder output and actual consumption. Collect startup, steady-state, and end-of-run samples. Preserve extrudate from any abnormal event. Photograph the die and critical surfaces before and after the trial. When the line stops, record the residence-time event rather than excluding it from the report.

Recommended Quality-Control Plan

Incoming control can include package integrity, label and lot verification, appearance, identity, and selected chemical tests. In-process control should verify weighing, batch identification, mixer cycle, feeder behavior, extrusion settings, and first-piece color. Finished-product control should cover standardized color readings, visual approval, dimensions, surface quality, and application-specific properties.

Use control charts for stable high-volume production. Trend L*, b*, fluorescence-related values, dosage, melt temperature, pressure, scrap, and cleaning frequency. Warning limits allow investigation before the product exceeds the acceptance limit. Retain raw material and representative profile samples for the period needed to investigate customer complaints.

Supplier Qualification

A capable supplier should provide a current technical data sheet, safety data sheet, certificate of analysis, manufacturing traceability, packaging information, storage guidance, shelf life, and change-notification policy. Ask how identity, purity, moisture, and performance are controlled and how reference standards are maintained.

Audit questions should cover raw-material approval, process controls, contamination prevention, calibration, sampling, out-of-specification handling, retained samples, complaint investigation, business continuity, and subcontracting. A certificate is useful only when its tests are relevant, methods are defined, and the production lot is traceable.

Lot-to-Lot Verification

Approve several representative lots when the application risk justifies it. Compare the candidate lots with the retained approved standard in the same base formulation. A rapid plaque test can monitor routine deliveries, while a full extrusion and weathering program is reserved for initial qualification, significant changes, or investigations.

Establish a documented response to trend shifts. Review sampling and measurement first, then compare retained material, formulation lots, processing history, and instrument condition. Do not release a questionable lot simply because one repeated result passes after several failures.

Common Failure Modes

Whiteness improves in the lab but not in production

Check dosage accuracy, mixing scale, additive sequence, residence time, melt temperature, regrind, titanium dioxide, filler color, and sample geometry. Laboratory compression plaques and extruded profiles can have different thermal history and surface scattering.

The profile develops a blue cast

Reduce dosage and review the base formulation. Compare under several illuminants. A blue cast can indicate excessive brightener, an unsuitable toner balance, or an approval standard that overemphasized one instrument condition.

Fluorescence is uneven

Investigate weighing, premixing, feeder stability, agglomerates, contamination, masterbatch pellet uniformity, and regrind distribution. Map readings along the length and around the profile instead of averaging away the pattern.

Color deteriorates after heat exposure

Review the complete stabilizer and lubricant system, not just OB-1. Repeat a controlled heat-history ladder. Analyze whether the change is loss of fluorescence, PVC degradation, pigment change, deposit transfer, or surface alteration.

Outdoor exposure produces unexpected drift

Confirm exposure conditions and sample orientation, then compare optical and non-optical controls. Track titanium dioxide, stabilizer, polymer, toner, gloss, and fluorescence contributions separately where possible.

Change-Control Requirements

Require notification before changes to raw-material source, synthesis route, plant, equipment, specification, test method, packaging, or key subcontractor. The buyer should define which changes require documentation review, laboratory confirmation, production trial, weathering, or full requalification.

Internal changes also matter. A new PVC resin, titanium dioxide, calcium carbonate, stabilizer, lubricant, mixer, feeder, die, or regrind policy can invalidate an old brightener approval. Maintain a formulation and process matrix so that teams understand which evidence supports each product family.

Commercial Evaluation

Compare cost in the finished profile, not price per kilogram alone. Include active concentration, usable dosage, yield, scrap, color adjustments, cleaning, downtime, inventory, testing, and complaint risk. A cheaper powder that requires more dosage or creates unstable production can have a higher total cost.

Supply continuity is also part of value. Confirm lead time, minimum order, packaging, logistics, backup manufacturing, forecast communication, and technical support. Keep an approved alternative when interruption risk is material, but do not mix products or switch suppliers without a controlled comparison.

Approval Checklist

  • Application, exposure, regulatory boundary, and visual standard are documented.
  • Resin, titanium dioxide, filler, stabilizer, lubricant, modifier, and regrind are controlled.
  • Supplier identity, specification, methods, packaging, storage, and change control are reviewed.
  • A zero control, current standard, and justified dosage ladder are tested.
  • Color is measured with defined geometry, illuminant, observer, UV condition, and conditioning.
  • Visual comparison covers daylight and relevant artificial illumination.
  • Dispersion, feeder accuracy, plate-out, surface quality, and long-run stability are checked.
  • Heat history, migration, contact transfer, and weathering are evaluated where relevant.
  • Production trials include approved protocol, traceable samples, and acceptance criteria.
  • Routine incoming, in-process, and finished-product controls are assigned.

Frequently Asked Questions

Can Optical Brightener OB-1 replace titanium dioxide in PVC profiles?

No. It can adjust perceived whiteness through fluorescence, but it does not provide the opacity and scattering function of titanium dioxide. Any pigment reduction requires a separate hiding-power and performance study.

What is the correct OB-1 dosage?

There is no universal dosage. Use a small, controlled ladder in the actual formulation and select the lowest robust level that meets visual, instrumental, processing, migration, and durability requirements.

Why do two instruments report different whiteness?

They may use different illuminants, UV calibration, observers, geometries, apertures, or calculation methods. Sample thickness, backing, texture, and conditioning also matter. Align the methods before comparing numbers.

Should the brightest trial always be selected?

No. The brightest specimen under one lamp may have an unnatural blue cast, excessive fluorescence, poorer weathering balance, or a narrower processing window. Commercial approval must consider the full risk profile.

Can a laboratory plaque qualify outdoor window profiles?

A plaque is useful for screening, but production extrusion and justified weathering are still required. Profile geometry, surface, thermal history, cooling, and long-run deposits cannot be represented fully by one plaque.

How should supplier samples be compared?

Use coded samples in the same formulation, with the same raw-material lots, process settings, sampling, conditioning, and measurement method. Compare multiple lots where lot consistency is important.

What information should accompany a complaint?

Provide purchase order, supplier lot, retained powder, formulation batch, raw-material lots, dosing record, process history, profile samples, color data, photographs, storage, and exposure history. Preserve both failed and unaffected samples.

Conclusion

Practical Sampling and Documentation Plan

A representative sampling plan prevents a trial from being approved on unusually good material. For each formulation level, collect samples only after the line reaches defined steady conditions, then take additional sections at fixed time or mass intervals. Include the outer visible face, internal webs, weld-line regions, and locations where cooling or calibration may influence gloss. When profiles are cut into plaques, maintain orientation and identify the machine direction. Never write directly on the measurement area or store samples against colored paper that can transfer contamination.

Condition samples for an agreed period before final color measurement because temperature, surface moisture, and recent processing can influence observation. Keep a separate set for immediate readings so that short-term change can be quantified. Store approved references in darkness under controlled conditions, and replace them through a documented bridging study before they age beyond usefulness. A digital photograph is useful evidence, but it is not a substitute for a protected physical standard and traceable numerical data.

The trial report should connect every result to the material and process that produced it. Record supplier and internal lot codes, actual weights, operator, equipment, mixer loading sequence, mixing temperature, discharge temperature, feed rate, screw speed, pressure, melt temperature, vacuum, cooling water, line speed, and any intervention. Attach raw instrument exports rather than copying only selected averages. Note rejected readings and explain the reason instead of silently deleting them.

For weathering and migration samples, create a chain-of-custody record that identifies exposure rack, chamber cycle, start date, interval, orientation, cleaning method, and measurement location. Retain an unexposed control from the same profile length. If a subcontract laboratory is used, agree on sample coding, method edition, reporting units, uncertainty expectations, and handling of deviations before shipment.

Production release should not depend on the trial team remembering informal conclusions. Convert the approved conditions into the bill of materials, work instruction, incoming specification, color standard, control plan, and approved-supplier list. Train operators on the permitted adjustment range and escalation rule. If color approaches a warning limit, investigate resin, pigment, filler, stabilizer, dosing, temperature, and regrind before adding extra brightener. Uncontrolled correction can hide the original signal and make the next batch harder to diagnose.

Finally, schedule a post-launch review after enough commercial production has accumulated. Compare dosage consumption, color capability, scrap, cleaning frequency, weathering progress, customer feedback, and supplier delivery performance with the assumptions used in approval. Close any temporary trial conditions, update limits with justified data, and document lessons for the next formulation. This review completes the qualification loop and prevents a successful short trial from becoming an unmanaged long-term risk.

Optical Brightener OB-1 can help rigid PVC profiles achieve a cleaner and more consistent white appearance, but only when it is integrated into disciplined formulation and process control. Buyers should define the application boundary, screen dosage in the real compound, measure fluorescence under controlled conditions, verify dispersion and thermal behavior, and confirm migration and weathering where required.

The strongest qualification program combines supplier documentation, reproducible incoming tests, controlled extrusion trials, physical standards, retained samples, trend monitoring, and formal change control. That approach turns a visually powerful low-dose additive into a manageable production input rather than a last-minute correction for broader formulation problems.

Zirconium Beads for Agrochemical Suspension Concentrate Milling: Particle Size, Stability, Wear Control and Supplier Qualification

/0 Comments/in , /by

Quick answer: Zirconium beads for agrochemical suspension concentrate milling should be selected by matching bead size, density, composition, wear rate, sphericity, and surface quality to the active ingredient, dispersant system, mill design, feed size, target particle-size distribution, temperature limit, and contamination requirement. A controlled formulation trial should compare grinding time, specific energy, slurry temperature, D50 and D90, viscosity, suspensibility, wet-sieve residue, storage stability, media loss, and screen reliability before a supplier is approved.

Suspension concentrates depend on the stable dispersion of water-insoluble active ingredients. Milling quality can influence biological performance, dilution behavior, nozzle compatibility, sedimentation, redispersibility, and shelf life. Zirconia grinding media provide high density and strong energy transfer, but an unsuitable bead grade or size can generate excess heat, accelerate wear, damage the separation system, or produce a particle-size distribution that does not remain stable during storage. This guide explains how formulation, production, quality, and purchasing teams can qualify media using evidence rather than a certificate value alone.

Why Zirconium Beads Matter in Suspension Concentrate Production

Grinding media transfer energy from the mill rotor to active-ingredient agglomerates and crystals. Bead performance affects collision frequency, impact intensity, temperature rise, residence time, and the number of passes needed to reach the approved particle-size window. The best choice is not automatically the densest or smallest media. It is the grade that meets formulation targets consistently while controlling energy, heat, contamination, wear, downtime, and total cost.

Inadequate milling may leave a coarse tail that settles rapidly or blocks spray equipment. Excessive milling can create unnecessary fines, increase surface area and dispersant demand, raise viscosity, promote crystal growth, or reduce physical stability. Media selection must therefore be integrated with formulation design and process control.

Define the Formulation and Regulatory Boundaries

Before requesting samples, define the active ingredient, concentration, crystal form, technical-material purity, feed particle size, hardness, melting or softening behavior, and sensitivity to heat. Record the dispersants, wetting agents, antifoams, thickeners, preservatives, water quality, pH, ionic strength, solids content, density, and target viscosity. A media recommendation without this context is only a guess.

Identify contamination limits that could affect product registration, toxicology, crop safety, color, chemical stability, or customer specifications. Zirconia beads are often selected because of their high wear resistance, yet different stabilizers and manufacturing routes can release different trace elements. Compliance documentation should support, not replace, application testing.

Zirconia Composition and Stabilization

Commercial zirconia grinding beads may use yttria, ceria, or other stabilizing systems, and some grades are zirconia-silicate composites. These products differ in density, toughness, hardness, chemical composition, color, and wear behavior. Buyers should state the required product family rather than using “zirconium beads” as if every grade were interchangeable.

Request typical composition, guaranteed limits for critical components, manufacturing method, and change-control commitments. A high zirconia percentage does not alone prove good performance. Grain size, phase distribution, porosity, sintering quality, internal defects, and surface finishing all influence fracture resistance and wear.

Density and Energy Transfer

High-density zirconia media can deliver greater collision energy than glass or many alumina grades at the same operating speed. This can shorten milling time or improve throughput, particularly for hard active-ingredient crystals. However, greater energy can also raise temperature and mechanical stress. Rotor speed, bead loading, feed rate, cooling, and viscosity must be optimized with the media rather than copied unchanged from another grade.

Clarify whether a supplier reports true density, apparent density, or bulk density. Bulk density helps calculate charging mass, while material density is more useful when comparing energy transfer. Use consistent methods and tolerances; otherwise apparently precise supplier comparisons can be misleading.

Selecting Bead Size

Zirconium beads milling an agrochemical suspension concentrate
Bead size, loading, slurry flow and cooling must be balanced to control particle size and temperature.

Bead size should be selected from feed particle size, target D90 or D97, active-ingredient hardness, slurry viscosity, mill rotor geometry, and separator gap. Larger beads provide stronger impacts for a coarse feed but fewer contact points. Smaller beads provide more contacts and may produce a finer distribution, provided the mill can retain and move them reliably.

A common mistake is to select the smallest available media without confirming separator compatibility. Undersize beads can escape through the screen, increase pressure, or accumulate downstream. Conversely, beads that are too large may generate excessive impact, heat, and broad particle-size distributions. Laboratory and production trials should evaluate at least two technically credible sizes when the optimum is uncertain.

Size Distribution, Sphericity, and Surface Quality

A narrow size distribution supports stable packing, circulation, collision behavior, and screen retention. Excess undersize or oversize fractions can change power draw and process consistency. Spherical beads distribute stress more evenly than irregular media and generally move more predictably through a stirred mill.

Inspect new media for flat spots, cracks, chips, pores, discoloration, fused pairs, adhering powder, and foreign material. Surface smoothness reduces stress concentrations, but appearance alone cannot confirm internal quality. Combine visual inspection with sieve analysis, dimensional measurement, density verification, and a controlled wear test.

Dispersant System and Milling Behavior

The dispersant must wet newly created active-ingredient surface during milling. If dosage or chemistry is inadequate, viscosity can rise, circulation can become unstable, and particles can re-agglomerate. Excess dispersant may also harm storage stability, foam behavior, rainfastness, or downstream dilution. Media trials should use the approved or development formulation rather than water and active ingredient alone.

Track pH, conductivity, solids, density, viscosity, and temperature at defined intervals. Additions made during a trial must be recorded. When formulation variables change at the same time as media, the result cannot be attributed confidently to the beads.

Temperature Control and Active-Ingredient Stability

Mechanical energy becomes both particle breakage and heat. Some active ingredients soften, transform, dissolve, hydrolyze, or degrade when temperature rises. High temperature can also change viscosity, antifoam behavior, dispersant adsorption, and preservative performance. Define an outlet-temperature limit before the trial and verify cooling-water capacity.

Record inlet and outlet temperatures, cooling-water temperature and flow, power, pressure, and throughput. If a candidate media grade produces fast size reduction but exceeds the thermal limit, adjust speed, feed rate, loading, or pass strategy. The production process must remain robust during warm ambient conditions, not only during an ideal laboratory run.

Particle-Size Distribution and Coarse-Tail Control

One median value cannot describe suspension concentrate quality. Monitor D10, D50, D90 or D97, maximum oversize, and wet-sieve residue as appropriate. A small coarse fraction may dominate sedimentation or nozzle-blocking risk even when the D50 looks acceptable. Very fine material may increase viscosity and promote Ostwald ripening.

Standardize sampling, dilution, dispersant, ultrasound treatment, optical parameters, and instrument method. Compare complete curves and replicate measurements. Samples should be taken only after circulation and operating conditions are stable.

Viscosity, Rheology, and Flow

Viscosity affects bead movement, pumping, pressure, cooling, and energy transfer. Measure it at a defined temperature, shear condition, spindle or geometry, speed, and conditioning time. Low-shear rheology influences settling, while high-shear behavior affects milling, pumping, filling, and spray dilution.

A particle-size improvement that creates unacceptable viscosity is not a successful trial. Evaluate whether the change comes from excessive fines, temperature, dispersant depletion, foam, evaporation, or active-ingredient morphology. Adjust one variable at a time and preserve samples for confirmation.

Suspensibility, Sedimentation, and Redispersibility

A suspension concentrate must remain physically stable and redisperse after storage. Test suspensibility and sediment behavior using the registered or internally approved method. Observe sediment volume, compactness, supernatant, flocculation, crystal growth, and ease of redispersion after ambient and accelerated storage.

Media qualification cannot be completed at the mill discharge. Retain trial samples in representative packaging and evaluate them over the required stability period. Compare dilution, wet sieving, foam, pourability, and nozzle-relevant behavior after aging.

Wear, Contamination, and Product Integrity

Media wear creates replacement cost and introduces ceramic constituents into the formulation. Compare mass loss per operating hour and per tonne of acceptable product. Analyze relevant elements when trace contamination matters. Monitor color, active-ingredient assay, impurities, pH, and chemical stability where the formulation risk assessment requires it.

Fragments indicate a different failure mode from gradual wear. They can damage screens, seals, and mill internals or contaminate filling equipment. Investigate start-up conditions, bead size, screen gap, thermal shock, rotor speed, mixed-media operation, and ceramic microstructure.

Mill and Separator Compatibility

Horizontal and vertical mills differ in chamber geometry, rotor type, power density, cooling area, and separation system. Follow the equipment manufacturer’s allowable bead-size and loading range. Confirm screen condition before a trial; a worn screen can falsely suggest poor bead-size control.

Record differential pressure, flow, power, and discharge behavior. Inspect retained material and any escaped particles. A stable process should maintain separation without persistent blockage or abnormal pressure growth.

Bead Loading and Operating Window

Too little media reduces collision frequency, while too much can raise pressure, temperature, torque, and start-up difficulty. Calculate charge from verified chamber volume and media bulk density. Do not rely on bag count alone. Establish a controlled make-up procedure and record every addition by mass and lot.

Optimize rotor speed, pump rate, solids, and pass strategy around the selected media. A supplier trial should document the operating window, not only one best data point. Production needs tolerance to normal variation in feed and ambient conditions.

Foam and Air Management

Foam can distort apparent volume, reduce pump efficiency, interfere with heat transfer, and create sampling error. Air entrainment may also promote oxidation or destabilize sensitive formulations. Track foam during premixing, milling, sampling, and filling.

Use the approved antifoam and addition sequence. Avoid changing antifoam chemistry merely to make one media trial look stable. If a media or operating change alters air entrainment, evaluate the downstream effect on package fill, storage, and dilution.

Laboratory Screening

Begin with document review, appearance, size distribution, density, and a repeatable wear test. A laboratory stirred mill can compare grinding curves, energy, temperature, viscosity, PSD, and contamination using the actual formulation. Keep mill volume, media charge, speed, feed batch, cooling, sample intervals, and analytical methods constant.

Laboratory tests screen candidates but cannot reproduce every production feature. Scale, separator design, circulation, cooling, and residence-time distribution differ. Advance only candidates that show consistent results and no unexplained stability risk.

Controlled Production Trial

Establish a baseline with the current approved media. Define trial objectives and acceptance criteria before charging the candidate. Record feed data, bead lot, loading, speed, flow, power, pressure, temperature, sampling times, PSD, viscosity, wet-sieve residue, suspensibility, assay, and media additions.

Run beyond initial conditioning and produce enough material for storage testing. Note mixed-media content during conversion. Compare multiple stable runs rather than one favorable sample, and document operator interventions and maintenance events.

Quality-Control Tests for Finished Suspension Concentrate

The finished-product panel may include active-ingredient content, relevant impurities, appearance, density, pH, viscosity, particle-size distribution, wet-sieve residue, suspensibility, persistent foam, dilution stability, pourability, and low-temperature or accelerated storage. Select tests from the registered product specification and risk assessment.

Use controlled sample conditioning and qualified methods. A grinding trial is acceptable only when immediate and aged performance meet requirements. Preserve reference samples so unexpected results can be investigated.

Incoming Control for Zirconium Beads

Quality control testing for zirconium grinding beads and suspension concentrate
Qualification should combine bead inspection with particle-size, viscosity, suspensibility and storage-stability testing.

Verify identity, lot number, packaging, net weight, bead-size distribution, surface condition, color, certificate values, and foreign material. Retain a representative sample from each lot. Periodically confirm density, chemistry, and wear through internal or qualified external testing.

Trend results across lots. Gradual changes in undersize fraction, bulk density, appearance, or wear can reveal drift before production is affected. Define quarantine, investigation, concession, and rejection rules.

Supplier Qualification and Change Control

A qualified supplier should control raw materials, forming, sintering, finishing, size classification, inspection, packaging, calibration, and traceability. Ask for typical values and guaranteed limits separately. Review capacity, lead time, complaint response, retained samples, and continuity plans.

Require advance notice for changes in composition, raw-material source, production site, kiln, sintering cycle, forming route, finishing, classification, test method, or packaging. Determine whether each change needs document review, laboratory testing, or a new production trial.

Total Cost per Tonne

Purchase price per kilogram does not describe grinding economics. Calculate media cost per tonne of acceptable formulation, electricity, cooling, throughput, labor, cleaning, downtime, screen and mill-part wear, waste, and off-spec risk. Include the value of longer campaigns and stable product quality.

Use comparable production periods and normalize for formulation, feed particle size, target PSD, solids, and ambient conditions. A higher-priced bead may reduce total cost if it raises throughput or lowers wear and rejects.

Packaging, Storage, and Safe Handling

Zirconia media are dense. Packaging must be strong, sealed, labeled, and stable on pallets. Store in a clean, dry area with lots separated. Prevent fibers, wood, dust, tools, and packaging fragments from entering the mill.

Use approved lifting and charging procedures. Consider dust from formulation ingredients and follow site safety controls. Media handling should protect personnel, mill internals, and registered product quality.

Troubleshooting

If grinding slows, check feed PSD, active-ingredient lot, solids, viscosity, dispersant, bead loading, bead size, screen, speed, flow, power, and temperature. If pressure rises, investigate agglomeration, excessive viscosity, overfilling, separator blockage, or fragments. If storage stability worsens, compare PSD tails, fines, crystal form, dispersant demand, pH, and temperature history.

Preserve unused media, used beads, fragments, feed, mill-discharge samples, and aged product. A structured cause analysis is more reliable than assigning blame from one observation.

Recommended Purchase Specification

Specify product family, stabilizer system, composition limits, bead-size range, oversize and undersize limits, density method, bulk density, appearance, sphericity criteria, wear-test method and maximum loss, packaging, lot identification, certificate requirements, retained-sample period, and change notification. Add application-specific contamination limits.

Every numerical limit should have an agreed sampling and test method. Specifications should control meaningful risks without demanding irrelevant values that cannot be verified. The approved document should also identify responsible reviewers, revision history, deviation authority, and the records required for every shipment and subsequent technical investigation.

Premixing and Feed Preparation

Stable milling begins before material enters the bead mill. Technical active ingredient should be wetted and dispersed sufficiently to prevent dry pockets, large agglomerates, and unstable feed viscosity. Control addition sequence, mixer speed, mixing time, temperature, water quality, and powder charging rate. Screen the premix where the approved process requires removal of foreign material or extreme oversize.

Sample the feed tank after adequate circulation and confirm solids, density, pH, viscosity, and initial particle size. A changing feed makes media comparisons unreliable. If the premix thickens while waiting, define maximum hold time and continuous agitation requirements. Record every formulation correction so trial results can be interpreted accurately.

Pass Strategy and Residence Time

Suspension concentrates may be processed in batch circulation, multiple passes, or continuous mode. Each strategy produces a different residence-time distribution and can affect the coarse tail. Compare media at equivalent process endpoints rather than equal clock time alone. Record tank volume, circulation rate, number of theoretical turnovers, sample timing, and material remaining in lines.

Multiple moderate-energy passes may control heat better than one aggressive pass. Continuous production may offer stable throughput but requires reliable feed and separation. Select the strategy that meets PSD and stability targets without excessive fines or thermal exposure.

Crystal Growth and Ostwald Ripening

Very fine particles have high surface energy and may dissolve and redeposit onto larger crystals during storage. This can increase the coarse fraction even when the initial mill result is excellent. Risk depends on active-ingredient solubility, temperature, solvent impurities, surfactants, crystal form, and particle-size distribution.

Media trials should include accelerated and low-temperature storage with repeat PSD, microscopy, wet sieving, viscosity, and redispersibility. Avoid approving a setting solely because it produces the lowest D50. The most stable distribution may require a controlled lower fineness or a different dispersant and process temperature.

Dilution and Application-System Compatibility

The commercial product must disperse when added to water of varying hardness and temperature. Evaluate dilution stability, flocculation, foam, sediment, wet-sieve residue, and passage through representative filters or nozzles according to the approved development protocol. Milling media can influence these results indirectly through PSD, contamination, and dispersant demand.

Use realistic dilution order and agitation. A concentrate that looks uniform in its package may still create coarse residues after dilution. Include aged samples because storage can change crystal size and redispersibility.

Cleaning and Cross-Contamination

Crop-protection plants often manufacture multiple active ingredients. Media retention, mill dead zones, hoses, screens, and transfer vessels can carry material into the next campaign. Define validated cleaning sequences, rinse endpoints, and analytical limits. Consider whether bead size or damaged media makes cleaning more difficult.

During qualification, inspect the chamber and recovered media after cleaning. Account for media lost with product or rinse. Campaign planning and dedicated equipment may be needed for high-risk active ingredients. Cleaning time and waste should be included in total-cost comparisons.

Scale-Up from Laboratory to Production

Laboratory and production mills differ in power density, cooling, rotor geometry, separator, flow pattern, and residence time. Scale-up should use comparable specific energy and monitor temperature and PSD development rather than transferring speed directly. The same nominal bead size may behave differently when chamber volume and hydraulic conditions change.

Use a staged scale-up when formulation risk is high. Confirm results at pilot or reduced production volume before a full campaign. Document which variables were held constant and which were adjusted. This record supports future transfers to another mill or site.

Statistical Review and Process Capability

Normal variation can hide or exaggerate differences between media. Compare several stable batches and review average, range, and trend for throughput, energy, temperature, PSD, viscosity, residue, stability, and media additions. Mark changes in technical active ingredient, water, dispersant lot, ambient conditions, maintenance, and operator intervention.

After approval, establish warning and action limits for critical process indicators. A trend in power, pressure, temperature, or make-up media may reveal wear or formulation drift before finished product fails. Process capability is more valuable than a single excellent trial result.

Supplier Complaint Investigation

A useful complaint file includes purchase order, media lot, retained unused sample, charging history, operating records, fragments, screen inspection, feed and product samples, and comparison with the approved baseline. Photograph packaging and abnormal beads before material is mixed or discarded. Separate gradual wear from catastrophic fracture.

The supplier should provide traceable production records, relevant test data, root-cause analysis, containment, and corrective action. Both parties should agree on evidence and test methods. Replacing one shipment without understanding the mechanism does not protect future production.

Frequently Asked Questions

Which results should be reviewed before approval?

Review immediate particle-size distribution, coarse residue, throughput, specific energy, temperature, pressure, viscosity, foam, media loss, and contamination. Then review suspensibility, redispersibility, dilution, wet sieving, chemical assay, impurities, and physical stability after the required storage conditions. Approval should include both processing performance and finished-product behavior.

Should zirconia media from two suppliers be mixed?

Mixing can complicate wear measurement and may create a broad size, density, or composition distribution. During an intentional conversion, document the remaining old charge, added mass, lot numbers, and expected replacement period. Confirm that both products are compatible with the separator and process. Avoid uncontrolled mixing when investigating breakage or contamination because evidence becomes difficult to attribute.

How often should bead condition be inspected?

Inspection frequency should reflect campaign length, media consumption, product risk, and historical performance. Check make-up quantity routinely and inspect representative used beads during planned maintenance or when pressure, power, throughput, contamination, or screen behavior changes. Trend size loss, surface damage, fragments, and color. A consistent sampling location and cleaning method are needed for meaningful comparisons.

Are smaller zirconia beads always better for suspension concentrates?

No. Smaller beads provide more contact points, but the feed, viscosity, rotor, and separator must be suitable. Media that are too small can escape, block the system, or fail to break the coarse feed efficiently.

How long should a media trial run?

Run long enough to pass conditioning, cover representative production, and produce samples for storage testing. Define minimum hours, tonnes, and quality samples before starting. Short trials rarely prove wear or long-term stability.

What should be sent to a supplier?

Provide mill model, chamber and separator details, current media, bead loading, speed, power, feed PSD, active ingredient, formulation composition, solids, viscosity, pH, target PSD, temperature limit, throughput, and known problems. Confidential information can be managed under the company’s approved process.

Can two zirconia grades with the same density be interchangeable?

Not necessarily. Composition, microstructure, toughness, size distribution, sphericity, and surface condition may differ. Each grade should be validated against the same formulation and acceptance criteria.

Conclusion

Reliable suspension concentrate milling requires a balanced match between the active ingredient, formulation, mill, operating window, and grinding media. Zirconium beads should be qualified through documented laboratory screening and controlled production trials. Decisions should consider particle-size distribution, viscosity, temperature, stability, energy, wear, contamination, separator reliability, and total cost. A clear specification, incoming control, and supplier change management then convert a successful trial into stable production. Cross-functional review is essential: formulators protect product stability, production verifies capacity and operating tolerance, quality confirms specification compliance, maintenance evaluates equipment risk, and purchasing verifies commercial continuity. Regular performance reviews should compare current data with the approved baseline so that gradual drift is detected before it becomes a customer complaint, failed stability result, or unplanned mill shutdown. Consistent records also make future optimization, scale-up, and technical investigations faster and more reliable.

For related guidance, review Hengyi Technology’s zirconium beads guide, the paint and ink wet-grinding article, and the product portfolio. Obtain applicable test standards from authoritative publishers such as ISO and ASTM International.
